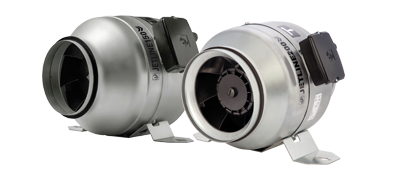

Fantech In Line Centrifugal Duct Fan JETLINE-100
$625.81 inc GST
The JETLINE-100 delivers compact centrifugal ventilation with quiet operation, durable galvanised steel construction and flexible mounting. Designed for standard 100mm ducting, it includes a quick-fit bracket and plug and lead for easier installation. Its IP44 motor, Class F insulation and sealed-for-life bearings support dependable performance in professional ventilation applications.
Fast Shipping
On All Orders
Australian Company
Owned & Operated
15+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind
20 in stock
Description
High-Performance Inline Ventilation
The Fantech Inline Centrifugal Duct Fan JETLINE-100 is a compact, high-performance ventilation solution designed for connection to standard 100mm circular ducting. Its patented centrifugal impeller and optimised impeller, guide vane and outlet diffuser configuration provide effective airflow while helping minimise operating noise. Silent-block motor mounting further reduces vibration, making the JETLINE-100 a practical choice where dependable ventilation and quieter operation are important.
The low-profile outer casing is manufactured from pressed galvanised steel for durability, while the internal housing and centrifugal impeller use injection-moulded plastic. This robust construction provides a reliable option for professional ventilation installations across residential, commercial and other building applications.
Easy Installation and Flexible Setup
The JETLINE-100 is designed with trade-friendly installation in mind. Its galvanised steel quick-fit mounting bracket helps simplify mounting, while the fan can be installed in any position to suit the requirements of the ductwork. Direct connection to standard circular ducting also makes it straightforward to integrate into suitable ventilation systems.
A plug and lead are supplied for convenient electrical connection, helping reduce installation time. The single-speed squirrel cage induction motor operates on a 220–240V single-phase supply at 50/60Hz and can be speed-controlled using compatible VA-type speed controllers.
Reliable Protection for Trade Installations
The JETLINE-100 combines durable construction with motor protection suited to professional ventilation work. The 100–125 models incorporate fuse protection, while larger models use manual-reset thermal overload protection. The protection system complies with AS/NZS 60335-2-80:2016 in-duct fan requirements, supporting dependable operation when correctly installed.
Key Specs
- Model: JETLINE-100
- Duct size: 100mm
- Type: Inline centrifugal duct fan
- Supply: 220–240V, single-phase, 50/60Hz
- Motor: Single-speed squirrel cage induction
- Motor rating: IP44
- Insulation class: Class F
- Bearings: Sealed-for-life ball bearings
- Housing: Pressed galvanised steel
- Installation: Any orientation
- Connection: Standard circular ducting
- Speed control: VA-type speed controllers
- Supplied with plug and lead
Ideal For
- Residential ventilation installations
- Commercial building ventilation
- Maintenance and replacement projects
- Standard 100mm circular ducting systems
- Electrical and HVAC trade installations
- Applications requiring compact, quieter inline ventilation
