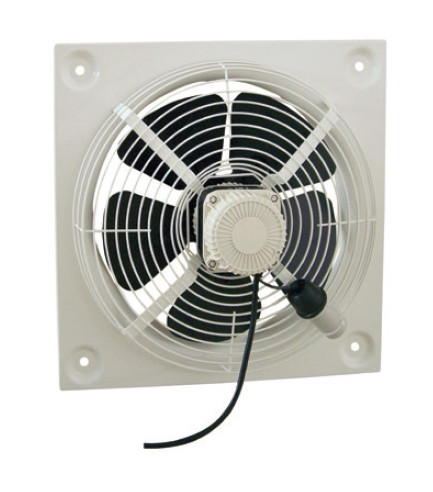

Fantech Wall Mounted Axial Fan HXM-300

Description

The HXM Series square plate fans are specifically designed for general ventilation exhaust purposes, intended solely for wall mounting, and available in sizes ranging from 200mm to 400mm for a 230V power supply.

Features:

Finger-proof inlet guard for enhanced safety.
Speed-controllable motors.
Models HXM-200 to HXM-350 come with Class B insulation.
Model HXM-400 is equipped with Class F insulation.
IP44 rated for protection against dust and water.
Construction:

Square plates and impellers are made from galvanized steel, finished with an epoxy polyester coating.
Motor:

Type: Capacitor-run motors (except for size 400).
Power supply: Single-phase, 230V, 50Hz.
Sealed-for-life ball bearings.
Speed-controllable.
Maximum operating temperature: 40°C.
Sizes 200 to 350 feature Class B insulation and an IP44 rating.
Size 400 includes an external rotor motor, Class F insulation, IP44 rating, and a wiring terminal box.
Internal Protection:

Models HXM-200 to HXM-350 come with thermal protection.
Model HXM-400 has both thermal protection and a wiring terminal box.
