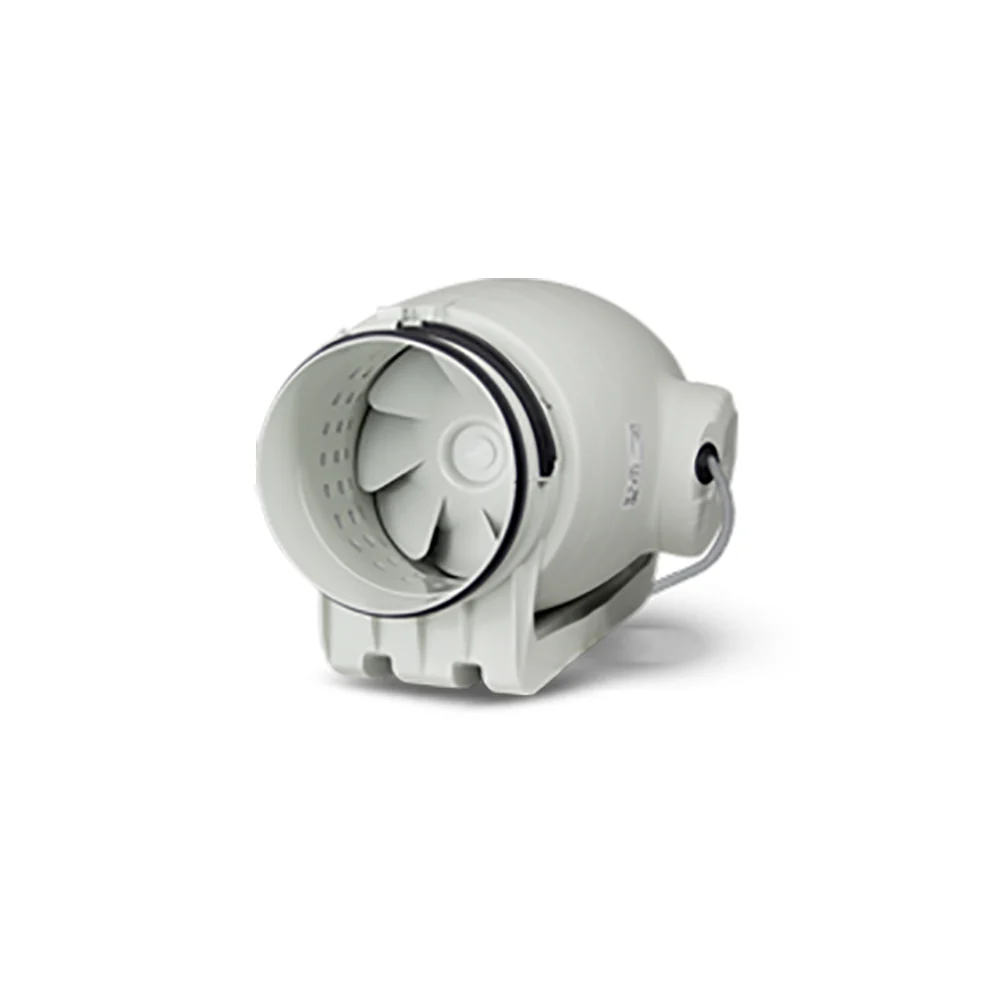

Fantech TD Silent Exhaust Fan Series L568mm TD-800/200SIL

Description

The TD Silent Series consists of low-profile mixed-flow in-line fans that feature an innovative approach to noise reduction, resulting in exceptionally quiet operation. This is achieved through a sophisticated internal design that maintains excellent airflow performance while minimizing noise. The series includes six models, with spigot sizes ranging from 100 to 315mm.

Product Features:

High-performance mixed-flow impeller
Quiet operation
Integrated vibration-absorbing elements
360° rotating junction box for easier power cable connection (for 100, 125, 150, and 200mm sizes)
Built-in mounting foot for straightforward installation
1 to 30-minute run-on timer available for 100 to 200mm models
Comes with plug and lead for hassle-free installation
Convenient 2-speed motor (single speed for models with run-on timer)
Easy removal of fan body without disturbing ductwork
Technical Details:

Operating Voltage: 240V
Wattage: 90W / 95W
Speed: 41 rps / 46 rps
Motor Type: 2-speed, squirrel cage induction motor for standard models
Motor Electricity Supply: 230V, single-phase, 50Hz
Bearings: Ball
Maximum Ambient Temperature: 60°C
IP Rating: IP44
Usage: Outdoor

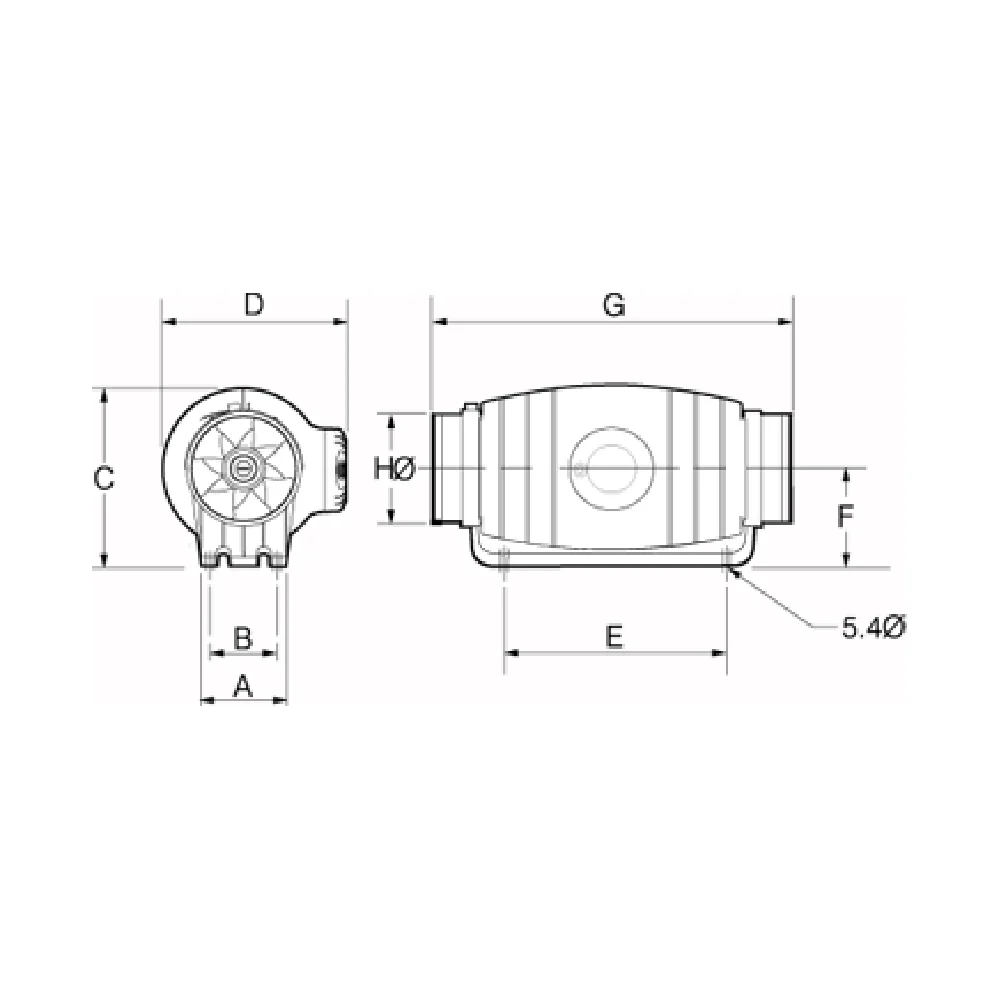

Dimensions:

Width: 296 mm
Length: 568 mm
Height: 296 mm
Base Width: 129 mm
Brand & Design:

Brand: Fantech Trade
Collection: TD Silent
SKU: TD-800/200SIL
