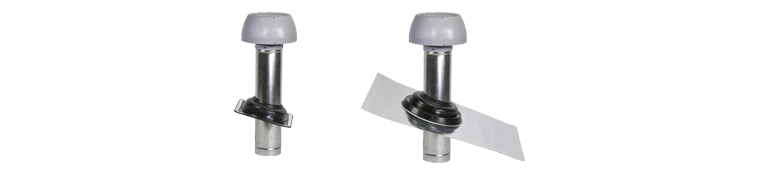

Fantech Ezifit Thru Roof Exhaust Fan (Plastic) ECEP154M

Description

The Ezifit Thru Roof exhaust fan is engineered to deliver strong airflow through 150mm and 200mm ducts from multiple points, making it ideal for long duct runs. It is designed for easy installation and operates quietly within the building since it is mounted externally on the roof.

The fan is available in eight models, each with an option for either a metal deck or tile roof flashing piece.

Features:

Galvanized steel duct paired with UV-stabilized ABS plastic cowl.
Simple and straightforward installation.
Includes a convenient 3-pin plug and lead.
3-pin plug connection between the motor assembly and duct.
Delivers high performance with minimal noise.
Powerful enough to exhaust air from multiple points or rooms.
Compatible with both tile and metal deck roofs.
External mounting ensures quiet operation indoors.
Equipped with a high-quality, continuous-rated motor.
Speed adjustable with an electronic controller.
Optional colored finish.
Supply air units also available.
Construction:

Galvanized steel duct.
UV-stabilized ABS plastic cowl.
Backward-curved centrifugal impeller.
Includes duct support straps and brackets for the 204 model.
Roof flashing piece included; specify roof type (tile or metal) when ordering.
Motors:

External rotor, squirrel cage induction motor.
Power supply: 230V, single-phase, 50Hz.
Sealed-for-life ball bearings.
Compatible with speed controllers.
Detailed motor information on pages O-2/3.
Internal Thermal Protection:

Auto-reset thermal protection.
Testing:

Airflow tested to ISO5801:2007.
Noise tested to BS848: Part 2, 1985.
