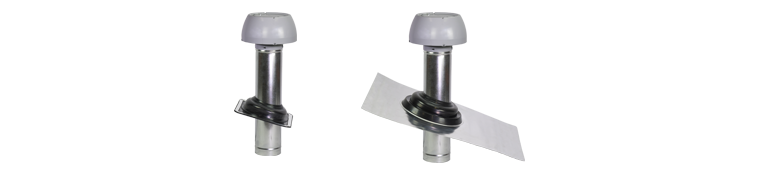

Fantech Ezifit Thru Roof Exhaust Fan (Plastic) ECEP152T

Description

The Ezifit Thru Roof exhaust fan is built to deliver strong airflow through 150mm and 200mm ducts from multiple points, making it ideal for long duct connections. This externally mounted unit is easy to install and ensures low noise levels within the building.

There are eight models available, each with the option of a metal deck or tile roof flashing piece.

Key Features:

Galvanized steel duct paired with a UV-stabilized ABS plastic cowl.
Quick and straightforward installation.
Equipped with a 3-pin plug and lead for convenience.
3-pin plug connection between the motor assembly and duct.
High performance with minimal noise.
Capable of exhausting air from several points or rooms.
Compatible with tile and metal deck roofs.
External installation ensures quiet indoor operation.
High-quality, continuous-rated motor.
Speed can be controlled using an electronic controller.
Optional colored finish available.
Supply air units also offered.
Construction:

Galvanized steel duct.
UV-stabilized ABS plastic cowl.
Backward-curved centrifugal impeller.
Includes duct support straps and brackets for the 204 model.
Roof flashing piece included, specify roof type (tile or metal) when ordering.
Motors:

External rotor, squirrel cage induction motor.
Power supply: 230V, single-phase, 50Hz.
Sealed-for-life ball bearings.
Compatible with speed controllers.
Motor details available on pages O-2/3.
Internal Thermal Protection:

Auto-reset thermal protection.
Testing:

Airflow tested to ISO5801:2007.
Noise tested to BS848: Part 2, 1985.
