Orange circular cable is a multi-core power distribution cable designed for residential, commercial, and industrial electrical installations across Australia. This versatile cable features stranded copper conductors with PVC or XLPE insulation, all encased within a distinctive orange outer sheath that provides enhanced UV resistance for both indoor and outdoor applications.
Manufactured to Australian Standard AS/NZS 5000.1, orange circular cable is available in voltage ratings of 450/750V and 600/1000V, making it suitable for mains, sub-mains, and sub-circuit applications. The cable’s round configuration offers superior durability compared to flat TPS cable, particularly in industrial environments where mechanical protection and weather resistance are essential.
Available configurations include 2 core+earth, 3 core+earth, and 4 core+earth options, with conductor sizes ranging from 1.5mm² to 70mm² to accommodate various load requirements from general lighting circuits to high-capacity power systems. The internal conductor colors follow Australian electrical standards: red for active, black for neutral, and green/yellow for earth.
This cable type is ideal for installations that may be unenclosed, enclosed in conduit, buried directly, or placed in underground ducts, provided it avoids direct mechanical damage. The orange circular cable’s V-90 or X-90 insulation allows continuous operation at temperatures up to 90°C, with short-circuit ratings up to 250°C. Browse our extensive range of cable products for all your electrical project needs.
Orange circular cable is primarily used for power distribution in residential, commercial, and industrial installations where the cable may be exposed to harsh environmental conditions. Common applications include construction sites, factories, outdoor installations, and industrial power systems requiring UV resistance and mechanical durability. The cable is suitable for unenclosed installations, conduit enclosures, direct burial, and underground ducting.
The voltage rating indicates the maximum operating voltage the cable can safely handle. The 450/750V rating uses V-90 PVC insulation and is typically specified for domestic and light commercial applications, while the 600/1000V rating features X-90 PVC or XLPE insulation for more demanding commercial and industrial installations. Higher voltage ratings provide greater electrical safety margins and are required for certain power distribution systems.
Cable core selection depends on your electrical circuit configuration. Two core+earth cable is used for single-phase power circuits, three core+earth suits three-phase applications without a neutral, and four core+earth accommodates three-phase installations requiring a neutral conductor. All configurations include an earth conductor for electrical safety, with core colors following Australian standards: red (active), black (neutral), white/blue (additional phases), and green/yellow (earth).
Conductor size selection depends on the electrical load, circuit length, and voltage drop calculations specified in AS/NZS 3000. Smaller sizes like 1.5mm² and 2.5mm² typically handle lighting circuits and general power outlets, while 4mm² to 10mm² suit appliance circuits and sub-mains. Larger sizes from 16mm² to 70mm² are specified for high-capacity industrial equipment, main switchboard connections, and heavy-duty power distribution where substantial current loads are anticipated.
Yes, orange circular cable features enhanced UV resistance and a durable PVC or XLPE outer sheath that allows both outdoor and underground installation. The cable can be installed directly in sunlight, buried in ground where not subject to mechanical damage, or placed in underground conduit systems. The orange sheath provides mechanical protection against moisture, oil, and chemical exposure common in industrial and construction environments.
Orange circular cable offers superior mechanical protection and environmental resistance compared to flat TPS cable. The circular configuration with its thicker sheath makes it more suitable for industrial, commercial, and outdoor installations where cables face harsh conditions, potential impact, or UV exposure. Flat TPS cable remains more economical for standard domestic fixed wiring applications like lighting and power outlets where environmental challenges are minimal.
Showing 17–32 of 64 results
4mm 4 Core and Earth Orange Circular Electrical Cable 600/1000V 100m SRC4040E 4mm 4C + Earth Orange Circular XLPE Brand Various Cable Brands Part Number SRC4040E Also Known As 4c+e 4c&e 3 Core + Earth Circ 4mm3C Cable Conductor Material Annealed Copper Cable Core Colours Red, black, white, blue & Earth Cable Drum Length Per…
4mm 4 Core and Earth Orange Circular 450/750V Electrical Cable 100m SRCV4040E 4mm 4C + Earth Orange Circular XLPE Brand Various Cable Brands Part Number SRCV4040E Also Known As 4c+e 4c&e 4 Core + Earth Circ 4mm4C Cable Conductor Material Annealed Copper Cable Core Colours Red, black, white, blue & Earth Cable Drum Length Per…
6mm 2 Core and Earth Orange Circular 450/750V SRCV2060E 100m 6mm 2C + Earth Orange Circular XLPE Brand Various Cable Brands Part Number SRCV2060E Also Known As 6c+e 6c&e 2 Core + Earth Circ 6mm2C Cable Conductor Material Annealed Copper Cable Core Colours Red, Black, & Earth Cable Drum Length Per Metre Cable Insulation &…
6mm 2 Core and Earth Orange Circular 600/1000V SRCV2060E 100m 6mm 2C + Earth Orange Circular XLPE Brand Various Cable Brands Part Number SRC2060E Also Known As 6c+e 6c&e 2 Core + Earth Circ 6mm2C Cable Conductor Material Annealed Copper Cable Core Colours Red, Black, & Earth Cable Drum Length Per Metre Cable Insulation &…
6mm 3 Core and Earth Orange Circular Electrical Cable 450/750V 100m SRCV3060E 6mm 3C + Earth Orange Circular XLPE Brand Various Cable Brands Part Number SRCV3060E Also Known As 6c+e 6c&e 3 Core + Earth Circ 6mm3C Cable Conductor Material Annealed Copper Cable Core Colours Red, white, blue & Earth Cable Drum Length Per Metre…
6mm 3 Core and Earth Orange Circular Electrical Cable 600/1000V 100m SRC3060E 6mm 3C + Earth Orange Circular XLPE Brand Various Cable Brands Part Number SRC3060E Also Known As 6c+e 6c&e 3 Core + Earth Circ 6mm3C Cable Conductor Material Annealed Copper Cable Core Colours Red, white, blue & Earth Cable Drum Length Per Metre…
6mm 4 Core and Earth Orange Circular 450/750V Electrical Cable 100m SRCV4060E 6mm 4C + Earth Orange Circular XLPE Brand Various Cable Brands Part Number SRCV4060E Also Known As 6c+e 6c&e 4 Core + Earth Circ 6mm4C Cable Conductor Material Annealed Copper Cable Core Colours Red, black, white, blue & Earth Cable Drum Length Per…
6mm 4 Core and Earth Orange Circular 600/1000V Electrical Cable 100m SRC4060E 6mm 4C + Earth Orange Circular XLPE Brand Various Cable Brands Part Number SRC4060E Also Known As 6c+e 6c&e 4 Core + Earth Circ 6mm4C Cable Conductor Material Annealed Copper Cable Core Colours Red, black, white, blue & Earth Cable Drum Length Per…
Powerful & Reliable Electrical Performance This 10mm 2 Core & Earth XLPE cable is built to handle demanding electrical tasks with ease. Rated 450/750V and constructed with annealed copper conductors, it ensures consistent power flow for residential, commercial, and industrial installations. Its robust PVC insulation and striking orange sheath make it highly visible and compliant…

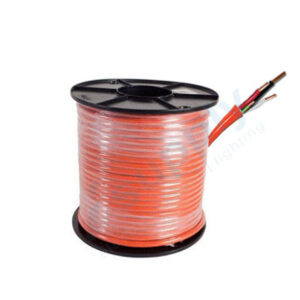

10mm 3 Core and Earth Orange Circular Electrical Cable 450/750V 100m XLPE3100E-100OR 10mm 3C + Earth Orange Circular XLPE Brand Various Cable Brands Part Number XLPE3100E-100OR Also Known As 10c+e 10c&e 3 Core + Earth Circ 10mm3C Cable Conductor Material Annealed Copper Cable Core Colours Red, white, blue & Earth Cable Drum Length Per Metre…
10mm 4 Core and Earth Orange Circular 450/750V Electrical Cable 100m XLPE3100E-100OR 10mm 4C + Earth Orange Circular XLPE Brand Various Cable Brands Part Number XLPE3100E-100OR Also Known As 10c+e 10c&e 4 Core + Earth Circ 10mm4C Cable Conductor Material Annealed Copper Cable Core Colours Red, black, white, blue & Earth Cable Drum Length Per…
16mm 2 Core and Earth Orange Circular 450/750V XLPE2160E-100OR 100m 16mm 2C + Earth Orange Circular XLPE Brand Various Cable Brands Part Number XLPE2160E-100OR Also Known As 16c+e 16c&e 2 Core + Earth Circ 16mm2C Cable Conductor Material Annealed Copper Cable Core Colours Red, Black, & Earth Cable Drum Length Per Metre Cable Insulation &…
Power up your next project with confidence using the heavy-duty 16mm 3 Core and Earth Orange Circular Electrical Cable. Built for serious performance, this cable delivers the strength, durability, and reliability needed for demanding power applications—whether you’re running sub-mains, setting up a workshop, or tackling a large commercial job. Crafted with high-quality annealed copper and…
16mm 4 Core and Earth Orange Circular 450/750V Electrical Cable 100m XLPE4160E-100OR 16mm 4C + Earth Orange Circular XLPE Brand Various Cable Brands Part Number XLPE4160E-100OR Also Known As 16c+e 16c&e 4 Core + Earth Circ 16mm4C Cable Conductor Material Annealed Copper Cable Core Colours Red, black, white, blue & Earth Cable Drum Length Per…
25mm 2 Core and Earth Orange Circular XLPE 600V/1000V Cable 100m XLPE2250E-100OR 35mm 2C + Earth Orange Circular XLPE Brand Various Cable Brands Part Number XLPE2350E-100OR Also Known As 2c+e 2c&e 2 Core + Earth Circ Twin and Earth XLPE Cable Conductor Material Annealed Copper Cable Core Colours Red, Black & Earth Cable Drum Length…
Heavy-Duty 25mm 3 Phase Cable for Reliable Power This 25mm 3 core and earth XLPE cable is engineered for electricians who demand dependable performance. With stranded annealed copper conductors and a robust orange PVC sheath, it ensures safe, high-capacity 3 phase power transmission. Perfect for sub-mains, commercial sites, or underground applications, this cable delivers consistent…
Orange circular cable is a multi-core power distribution cable designed for residential, commercial, and industrial electrical installations across Australia. This versatile cable features stranded copper conductors with PVC or XLPE insulation, all encased within a distinctive orange outer sheath that provides enhanced UV resistance for both indoor and outdoor applications.
Manufactured to Australian Standard AS/NZS 5000.1, orange circular cable is available in voltage ratings of 450/750V and 600/1000V, making it suitable for mains, sub-mains, and sub-circuit applications. The cable’s round configuration offers superior durability compared to flat TPS cable, particularly in industrial environments where mechanical protection and weather resistance are essential.
Available configurations include 2 core+earth, 3 core+earth, and 4 core+earth options, with conductor sizes ranging from 1.5mm² to 70mm² to accommodate various load requirements from general lighting circuits to high-capacity power systems. The internal conductor colors follow Australian electrical standards: red for active, black for neutral, and green/yellow for earth.
This cable type is ideal for installations that may be unenclosed, enclosed in conduit, buried directly, or placed in underground ducts, provided it avoids direct mechanical damage. The orange circular cable’s V-90 or X-90 insulation allows continuous operation at temperatures up to 90°C, with short-circuit ratings up to 250°C. Browse our extensive range of cable products for all your electrical project needs.
Orange circular cable is primarily used for power distribution in residential, commercial, and industrial installations where the cable may be exposed to harsh environmental conditions. Common applications include construction sites, factories, outdoor installations, and industrial power systems requiring UV resistance and mechanical durability. The cable is suitable for unenclosed installations, conduit enclosures, direct burial, and underground ducting.
The voltage rating indicates the maximum operating voltage the cable can safely handle. The 450/750V rating uses V-90 PVC insulation and is typically specified for domestic and light commercial applications, while the 600/1000V rating features X-90 PVC or XLPE insulation for more demanding commercial and industrial installations. Higher voltage ratings provide greater electrical safety margins and are required for certain power distribution systems.
Cable core selection depends on your electrical circuit configuration. Two core+earth cable is used for single-phase power circuits, three core+earth suits three-phase applications without a neutral, and four core+earth accommodates three-phase installations requiring a neutral conductor. All configurations include an earth conductor for electrical safety, with core colors following Australian standards: red (active), black (neutral), white/blue (additional phases), and green/yellow (earth).
Conductor size selection depends on the electrical load, circuit length, and voltage drop calculations specified in AS/NZS 3000. Smaller sizes like 1.5mm² and 2.5mm² typically handle lighting circuits and general power outlets, while 4mm² to 10mm² suit appliance circuits and sub-mains. Larger sizes from 16mm² to 70mm² are specified for high-capacity industrial equipment, main switchboard connections, and heavy-duty power distribution where substantial current loads are anticipated.
Yes, orange circular cable features enhanced UV resistance and a durable PVC or XLPE outer sheath that allows both outdoor and underground installation. The cable can be installed directly in sunlight, buried in ground where not subject to mechanical damage, or placed in underground conduit systems. The orange sheath provides mechanical protection against moisture, oil, and chemical exposure common in industrial and construction environments.
Orange circular cable offers superior mechanical protection and environmental resistance compared to flat TPS cable. The circular configuration with its thicker sheath makes it more suitable for industrial, commercial, and outdoor installations where cables face harsh conditions, potential impact, or UV exposure. Flat TPS cable remains more economical for standard domestic fixed wiring applications like lighting and power outlets where environmental challenges are minimal.
