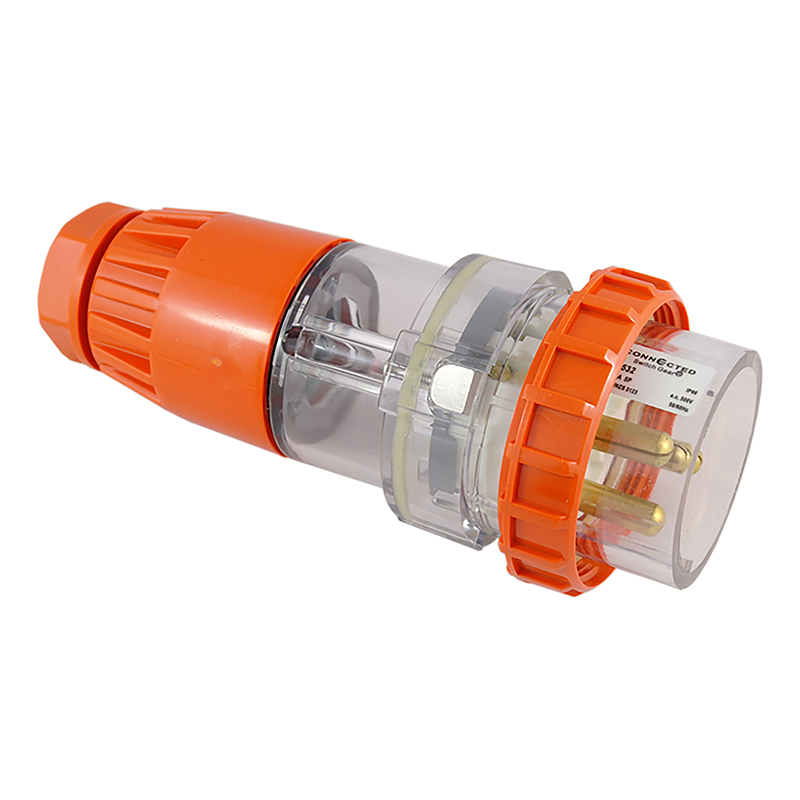

Connected Switchgear Impact Series Industrial 5-Pin Straight Plug (32A 500V) CS-P532
$71.00 inc GST
Specifications
General
Type
5 Pin Straight Plug
Body Colour
Transparent / Orange
Product Series
Impact
Number of Gangs
N/A
Box Qty
1
Warranty (Years)
5
Shipping Weight and Dimensions
Includes product packaging
Width
155 mm
Height
135 mm
Depth
155 mm
Weight
0.40 kg
25 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
The Impact Series from Connected Switchgear features industrial strength plugs made from impact and chemical resistant material. The Impact Series plug is fitted with a captive ring to secure sockets to achieve an IP66 weather protection rating.
– 5 pin three phase straight plug
– Transparent impact and chemical resistant housing
– With fitted captive ring for IP66 rated ingress protection
– Internal cable clamp to prevent cable twisting
– Round pin configuration, suitable for a flexible hose
– Minimum cable entry diameter: 10mm?, Maximum cable entry diameter: 27mm?
– Minimum terminal capacity: 2.5mm?, Maximum terminal capacity: 16mm?
– Rating (Amps): 32A
– Rated Voltage: 500VAC
– Rated Frequency: 50Hz/60Hz
– Operating temp; -40?C – 80?C
– Complies with AS/NZS 3100:2009, AS/NZS 3100:2017, AS/NZS 3112:2011, AS/NZS 3123:2005
– SAA approved
