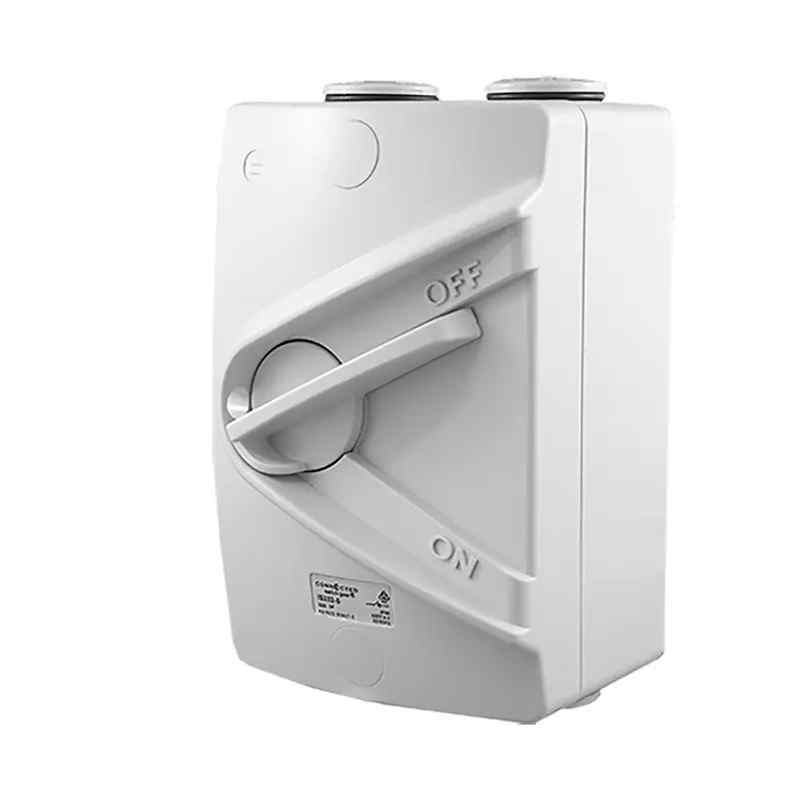

CGS 32A Double Pole Isolator 250V AC IP66 Weatherproof

Description

Our 32A double pole isolator is a part of our new range of Industrial Switchgear – IMPACT S Series isolator switches.

First of all, the IMPACT S Series is built tough for harsh Australian conditions and made from premium Impact Resistant polycarbonate material. In fact, all of our industrial switchgear is tested to achieve an IP66 protection rating.

Another feature of the IP66 IMPACT S isolator switches is that they are 3/4 size. They feature a new curved design that is unique to the IMPACT S Series and as a result, they stand out as different to all other isolators on the market today. All amperages of the switch disconnectors are equipped with 4 x M25 conduit entries so that you have options when running cables to the unit. Whereas the 63 amp model comes equipped with 2 x 32mm and 2 x 25mm entries.

Features:
Lockable toggles with ON/OFF identification
Laser identification markings
4 x M25 conduit entries
New Curved Design
3/4 Size
Silicone based seals
Screw caps and conduit adaptors included
Technical Parameters (IP66 isolator switch):
Double Pole
Amperage: 32amp
Voltage: 250V AC
Frequency: 50/60Hz
Operating Temp: -40°C – 80°C
IP Protection: IP66
Utilisation Category: AC-22A
Complies with AS/NZS60947.3:2018 60947.1:2015
SAA Certification
So it doesn’t matter if you require single phase or three phase, we have configurations to suit your needs. These switch disconnectors are available in a number of amperages, 20 amp to 63 amp, because who doesn’t like options?
