Description

Please note that all the CT COMBO are made to order. There’s usually between 1 to 3 weeks’ wait.

Product Details

PROTECTION DEVICES COMBINED WITH CT CHAMBERS FEATURE

• “COMBINATION SERVICE PROTECTION DEVICE 400AMP (SPD400) AND 400AMP CT CHAMBER T TYPE CT’S SUPPLIED AND INSTALLED. PANEL AND SURROUND AND TEST BLOCK SUPPLIED LOOSE. INTERNALLY WIRED AND WALL MOUNT”
• CT COMBO 200 – COMBINATION SERVICE PROTECTION DEVICE 200AMP (SPD250) AND 200AMP CT CHAMBER
  S TYPE CT’S SUPPLIED AND INSTALLED. PANEL AND SURROUND AND TEST BLOCK SUPPLIED LOOSE. INTERNALLY WIRED AND WALL MOUNT
• CT COMBO 250 – COMBINATION SERVICE PROTECTION DEVICE 250AMP (SPD250) AND 250AMP CT CHAMBER
  T TYPE CT’S SUPPLIED AND INSTALLED. PANEL AND SURROUND AND TEST BLOCK SUPPLIED LOOSE. INTERNALLY WIRED AND WALL MOUNT
• CT COMBO 400 – COMBINATION SERVICE PROTECTION DEVICE 400AMP (SPD400) AND 400AMP CT CHAMBER
  T TYPE CT’S SUPPLIED AND INSTALLED. PANEL AND SURROUND AND TEST BLOCK SUPPLIED LOOSE. INTERNALLY WIRED AND WALL MOUNT
• CT COMBO 630 – COMBINATION SERVICE PROTECTION DEVICE 630AMP (SPD630) AND 630AMP CT CHAMBER
  T TYPE CT’S SUPPLIED AND INSTALLED. PANEL AND SURROUND AND TEST BLOCK SUPPLIED LOOSE. INTERNALLY WIRED AND WALL MOUNT

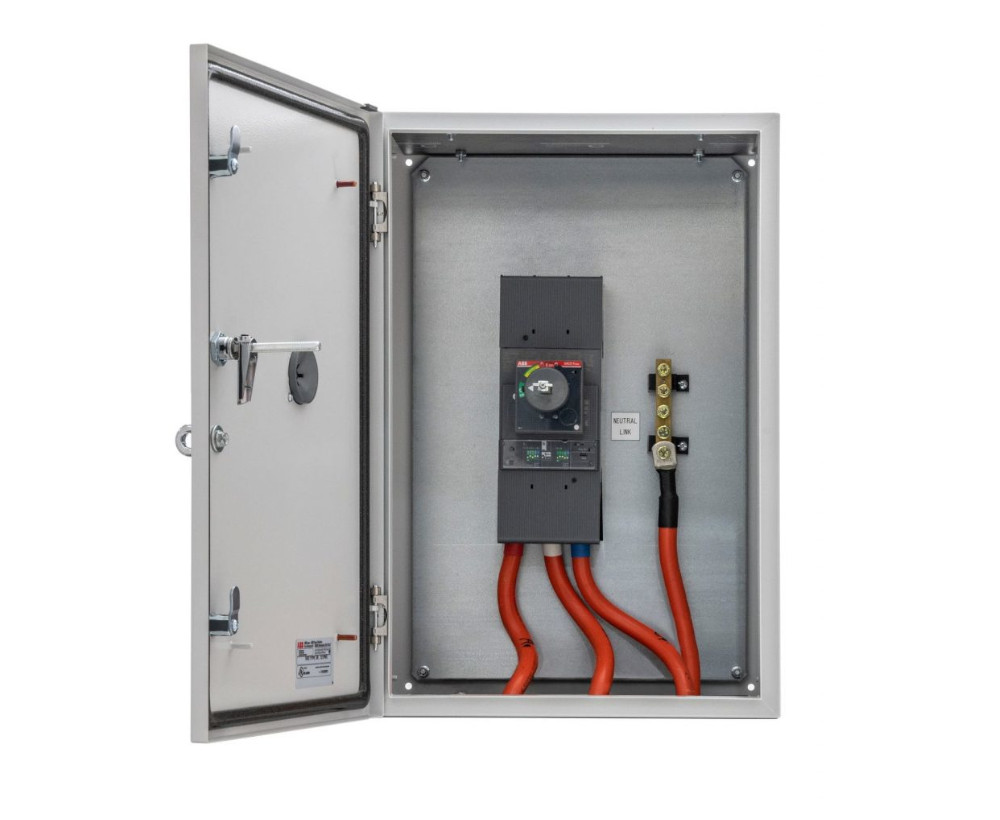

• They are all 3P grey metal hinged enclosed however their circuit breaker varies.
• Submission of Design and grading curves to the Energy Authorities is included
• Mounted Service protection devices with CT Chamber also available
• Meter panel and surround with test block available part of the board or remote mounted

Product Codes and Size (mm)

• SERVICE PROTECTION DEVICES
• Part Number Width Height Depth mm
  CT COMBO 200 400W x 1200H x 250D
  CT COMBO 250 500W x 1200H x 350D
  CT COMBO 400 500W x 1200H x 350D
  CT COMBO 630 500W x 1200H x 350D
