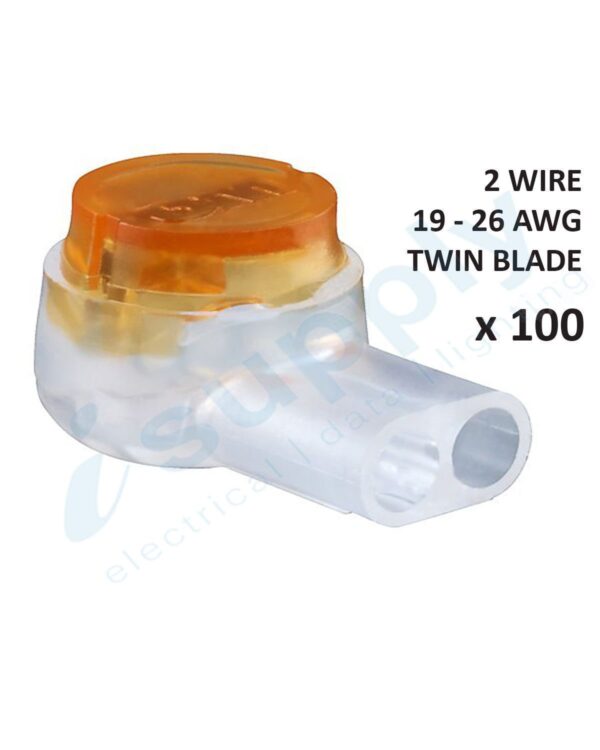

UY2 Twin Blade 2 Wire Scotchlok Scotch Lock Gel Filled Splice Crimp Connector

Description

UR – Gel Filled Splicing Connector

19-26 AWG Twin Blade

The splicing connectors utilize an insulation displacement contact design for fast, simple, reliable terminations. No wire stripping is required and connectors will accept wire of the different gauge. All connectors are Gel filled to provide moisture resistance and inhibit corrosion. For use with solid copper conductors only. Typical uses include Butt Splicing 2 or 3 wires of the same or varying gauges. Perfect for pigtail and load coil splice applications. For best results, crimp with appropriate Scotchlok™ crimping pliers.

Features

19-26 AWG conductor Standard connector 3 port wire splice Twin blade Gel filled to protect from moisture Flame retardant: No Splicing wires of different gauge Max. Insulation OD 0.060” (1.52 mm) Fast, simple and reliable termination No wire stripping required For use with solid copper conductors only Available in varying pack sizes
