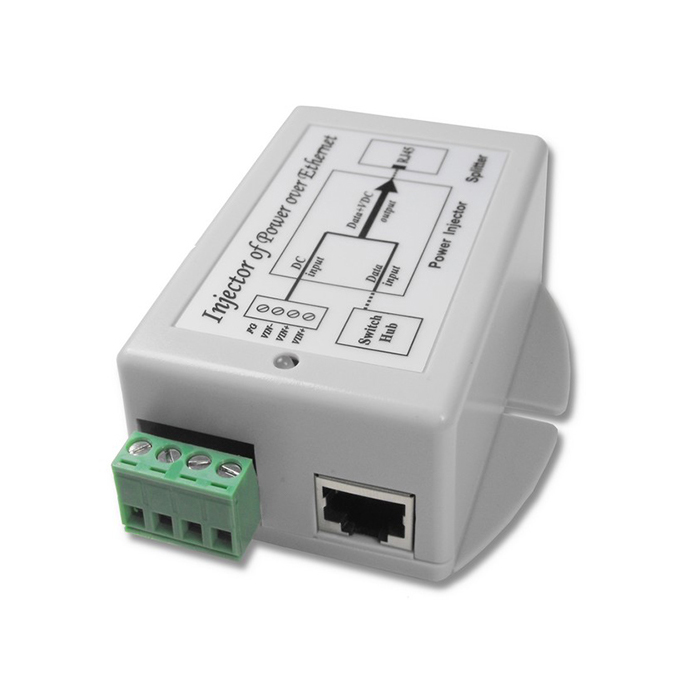

VIP Vision 9~36VDC to 48VDC PoE Injector/Converter VSPOEINJDCV2

Description

The VSPOEINJDCV2 is the PoE solution for high-power cameras, converting any voltage from 9~36VDC and outputting at 48VDC.

Product features:

• Input Voltage 9-36VDC; Output 48VDC

• 24W power output

• Integrated Gigabit PoE inserter

• Integrated PoE injector

• Short circuit, overcurrent & overvoltage protection

• High operating temperature

• Removable wire terminal input for up to 12AWG wires

SPECIFICATIONS

DC Input Voltage: 9VDC ~ 36VDC

DC Output Voltage (+/-2.5%): Dimensions

Dimensions: Efficiency (min)

Efficiency (min): 0.75

EMC Standards: FCC Class B NE55022 Class B

Input Connector: Removeable Screw Type Compression Wire Terminal (12 AWG Max)

Line Regulation: 0.01

Load Regulation: 0.05

Noise: 0.01

Operating Environment: -30 to +60°C / 90%RH (Max)

Output Connector: RJ45 (Shielded)

Output Current (max): 0.35A

Output Power (max): 24W

Ripple: 0.01

Safety Standards: UL1950, CSA 22.2 &TUV EN60950

Self Consumption Power: 1W

Storage Temperature: -40 to +80°C

Weight: 0.13kg

Warranty (Years): 1

Shipping Weight and Dimensions

Includes product packaging

Width: 70 mm

Height: 70 mm

Depth: 150 mm

Weight: 0.50 kg
