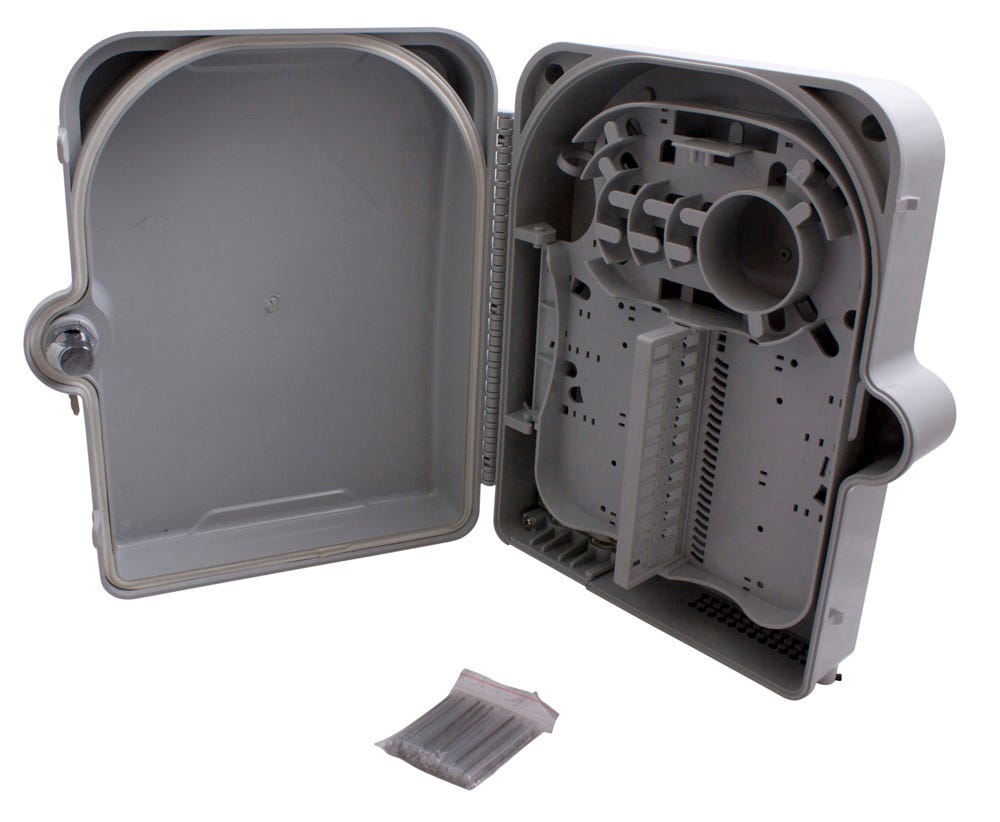

MSS Fibre WALL BOX FOR 24-FIBRE SC SIMPLEX IPRATED WB-24-SCS-IP

Description

IP65 rating for external use with lockable door for added security

Includes 24-way SC Simplex adaptor panel

Accepts SC Simplex and LC Duplex thru adaptors

Tough and durable small compact design

Dimensions (mm): 355 H x 280 W x 100 D

Product Description

Wall Box (For 24 Fibre SC Simplex) IP Rated

This lockable IP65 distribution box offers the ability to terminate from 12-24 fibres housed in robust ABS enclosures for indoor and outdoor applications.

With the ability to use both SC or LC adaptor types, this wall box offers a flexible solution to the end user, enabling them to incorporate a multi functional enclosure

which allows easy access during installation or re-work with no disturbance of the existing cable or fibres. There are also sufficient exit points for patching cables and

cable entry points for loose tube, tight buffered and pre-terminated cables. Each enclosure has integrated strength member tie positions and bend radius protection

with the addition of a removable front door allowing for quick and easy installation.

Wall Box Features

• IP 65 Rating for external use

• Lockable door for added security

• Integrated cable tie points for securing incoming cable

• Up to 24 splice & SC connection points

• Removable splice tray for easy installation

• Accepts loose tube, distribution and pre-terminated cables

• Integrated bend radius protection• Removable door for ease of installation

• Supplied with 24 heatshrink splice protectors

• Supplied with transit tubing

• Supplied with wall fixings and tie wraps

• ROHS, REACH & SvHC compliant

Applications

• Data centres, premise installations, telecommunication networks

• Ethernet, Fibre Channel, ATM, LAN, MAN and WAN

• Data communication and telecommunication networks

• Indoor/outdoor applications

Technical Specifications

Enclosure Type: Wall

IP Rating: IP65

Fibre Count: 24
