MSS Fibre WALL BOX DIN MOUNT 12F SC SPX 24F LC DPX WB-12MOD-DIN

Description

Compact size makes them very easy to install and remove

Ideal for pre-terminated cable assemblies/direct terminations

Accomodates up to 12 x SC Simplex or LC Duplex thru adaptors

Allow for fusion splicing pigtails to incoming loose tube cable

Product Description

Mini Wall Box (1 Panel/12 Fibre) DIN Mount

The mini DIN rail mounted wall has a compact design which gives it the ideal form factor for installation into densely populated industrial cabinets.

Mini Wall Box Features

• Small size making it very versatile

• Accommodates up to 12 x SC or LC duplex adapters

• Ideal for housing pre-terminated loose tube and tight buffered cables

• Allows for fusion splicing of up to 24 fibres, when two enclosures are fitted together

• Top and bottom cable entry to suit installation environment

Applications

• Process automation and control

• Intelligent transport system

• Rail signalling and control networks

• Power systems and control

• Pre-terminated cabling solutions

Accessories Available:

• Pigtails

• Splicing consumables

• Termination consumables

• Pre-tailed fibre optic cable assemblies available

Specifications

Size: (HxWxD) 105Hmm x 54Wmm x 155Dmm

Weight: 0.67kg

Maximum Number of Splices: 12

Maximum Fibre Count (Front Panel): 12 SC and LC

Incoming Cable Ports: 1 top and bottom

Material and Colour: Powder coated 1.6mm zinc annealed steel – dark grey

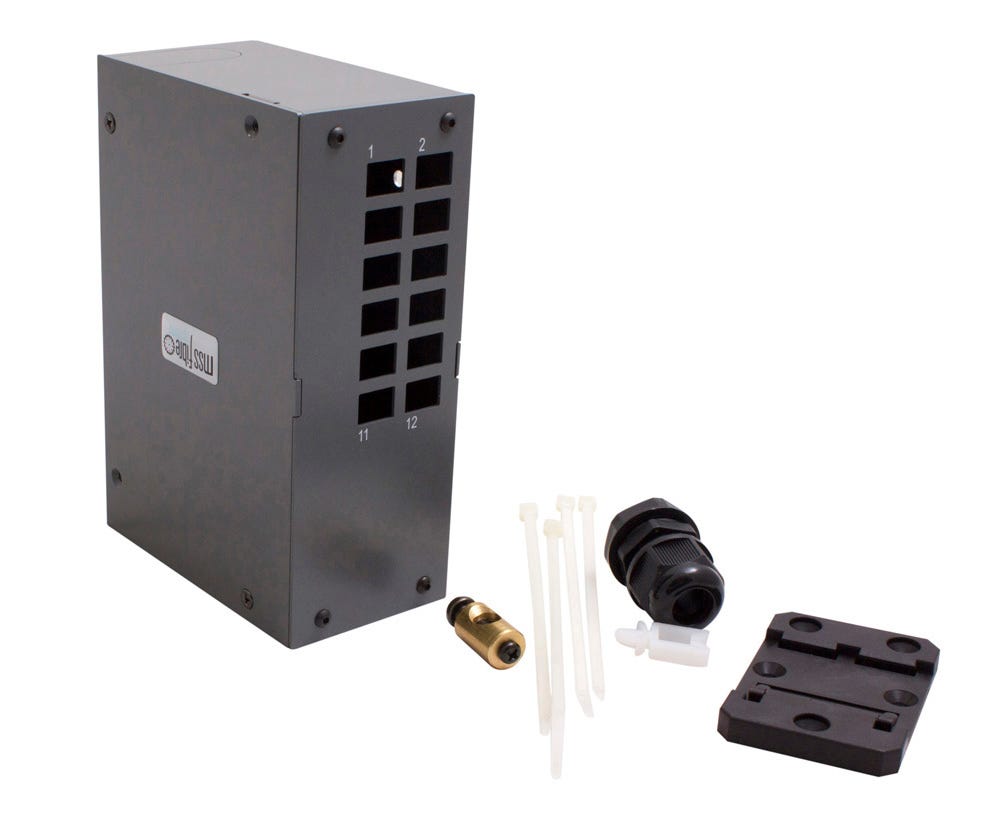

Standard Accessories: Cable gland, central strain relief post, DIN rail mounting clip, laser badge, fibre clips and through adapters

Technical Specifications

Enclosure Type: Din

Fibre Count: 24
