CABAC DMM LAN Cable Tester (1/each) C187
$573.59 inc GST
- 3 1/2 digit, 4000 count LCD digital multimeter with LAN cable pin to pin testing
- Voltage and resistance DMM. CATIII 600V
- Data hold, continuity, diode test 7 low battery indication
- RJ45/RJ11 pin ot pin testing with/without remote receiver
- Ideal instrument for the data cable installer electrician
20 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
Product Description

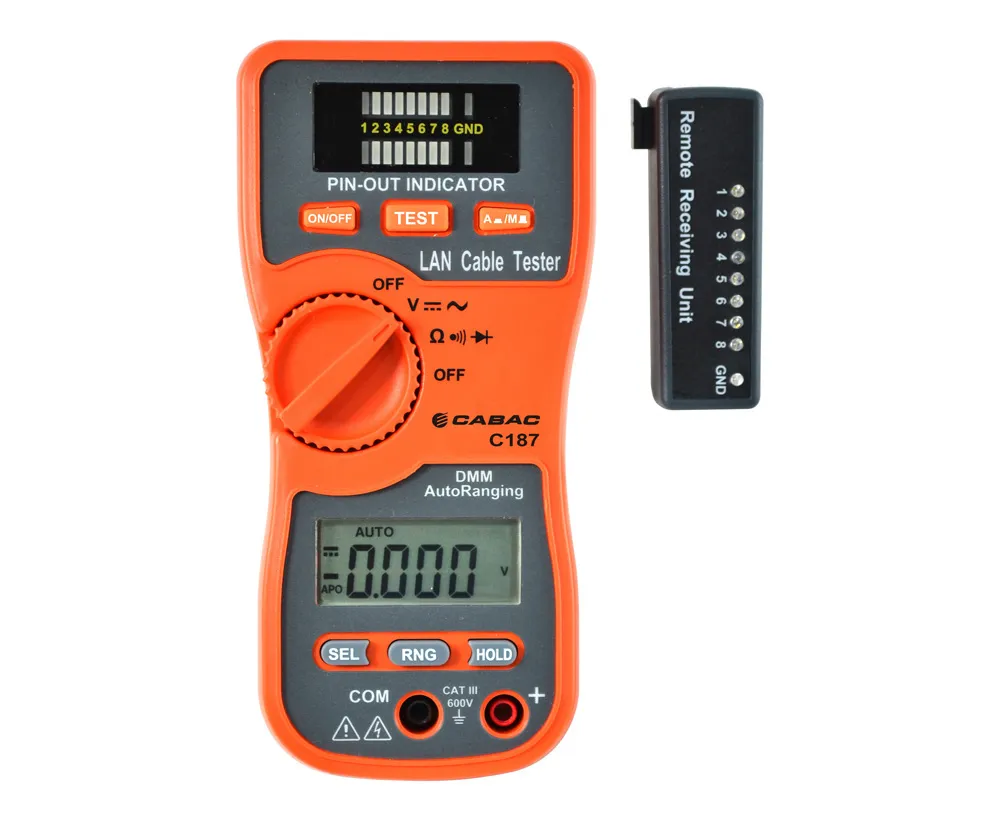

The C187 is an excellent solution for the data installer requiring a digital multimeter and LAN cable tester with RJ45 and RJ11 cables. Featuring a basic DMM, that measures voltage and resistance, plus a LAN cable tester which verifies continuity, open and miss-wired circuits.
The LAN tester has a pin to pin LED indication on the DMM or with a remote unit.
C187 Digital Multimeter Features
– 3 1/2 digit, 4000 count LCD
– Voltage and resistance DMM
– Data hold
– Continuity
– Diode test
– Low battery indication
C187 LAN Cable Tester Features
– LED indication of wire status
– RJ45/RJ11 modular cables
– 10/100 base and token ring
– LAN circuit tester verifies continuity, open, miss-wired circuit
– Remote indicator
– Auto and manual select function
– Ground wire test
Safety and Compliance
IEC/EN611010-1 CATIII 600V, EN61326-1, EN61000-4-2, and EN61000-4-3
Specifications
Each unit is supplied in a gift box with operating manual, soft pouch, test leads, self test cable, and batteries.
Batteries: 1 x LAN Tester 1 x 9V
2 x 1.5V AAA
Dimensions: DMM: 168(L) x 82(W) x 44(D) mm
Remote: 74(L) x 30(W) x 25(H) mm
Weight: 283g
