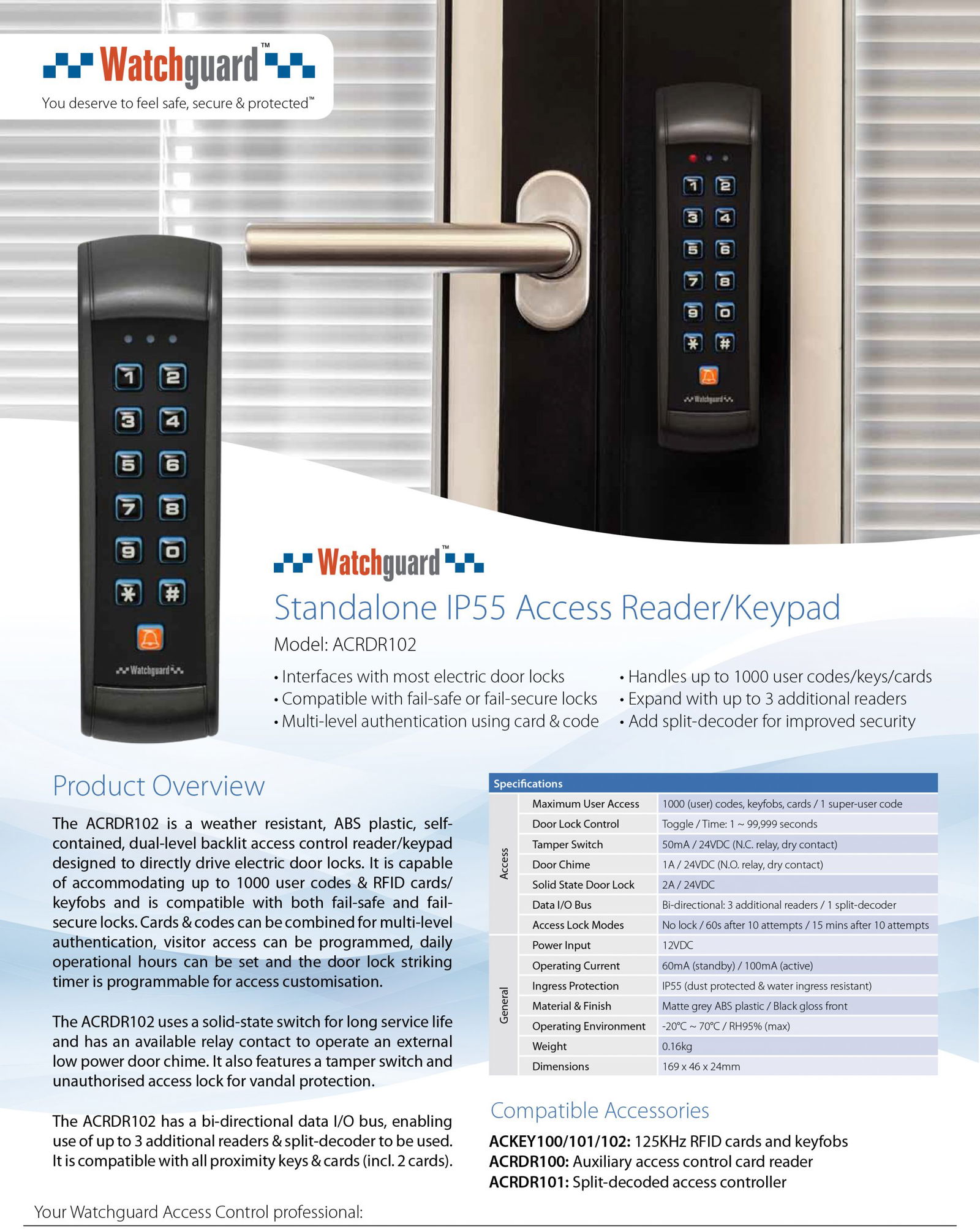

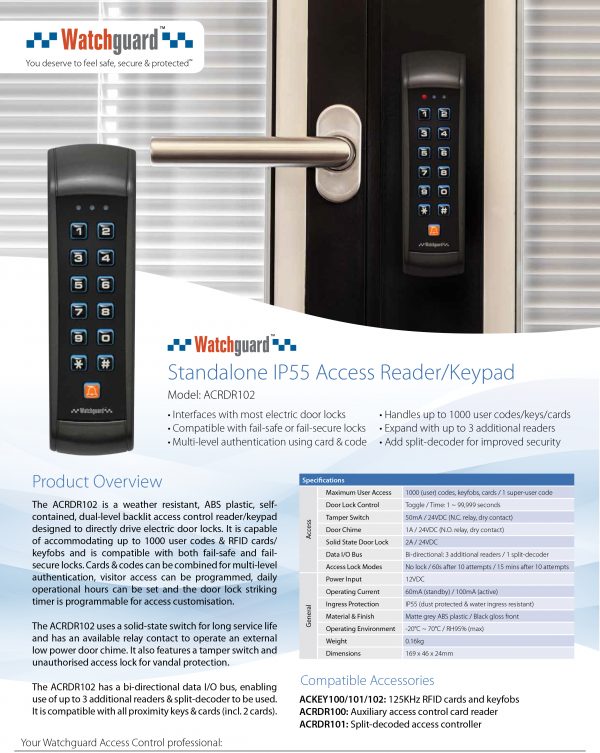

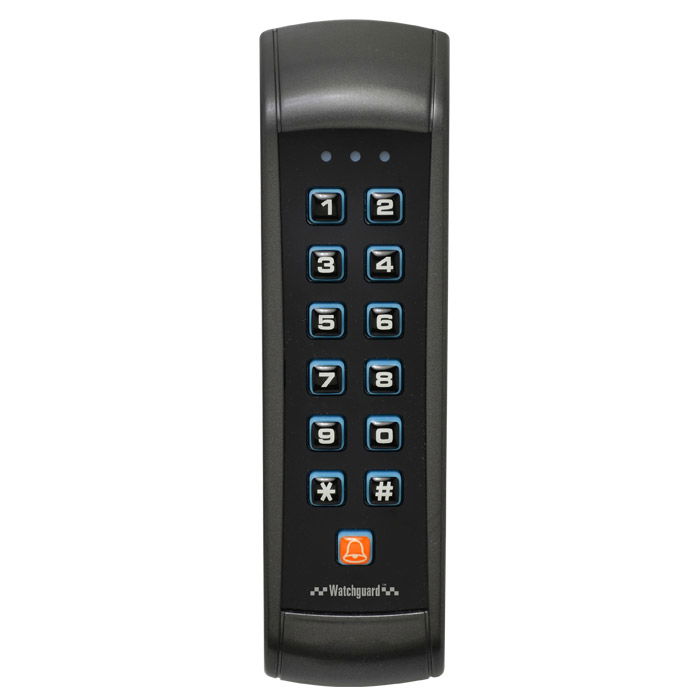

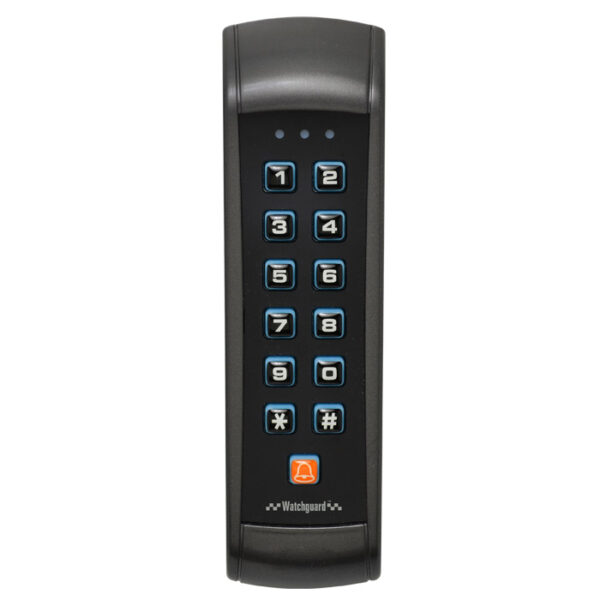

The ACRDR102 is a weather resistant, ABS plastic, self-contained, dual-level backlit access control reader/keypad designed to directly drive electric door locks. It is capable of accommodating up to 1000 user codes & RFID cards/keyfobs and is compatible with both fail-safe and failsecure locks. Cards & codes can be combined for multi-level authentication, visitor access can be programmed, daily operational hours can be set and the door lock striking timer is programmable for access customisation.
The ACRDR102 uses a solid-state switch for long service life and has an available relay contact to operate an external low power door chime. It also features a tamper switch and unauthorised access lock for vandal protection.
The ACRDR102 has a bi-directional data I/O bus, enabling use of up to 3 additional readers & split-decoder to be used. It is compatible with all proximity keys & cards (incl. 2 cards).
SPECIFICATIONS
General:
Access Lock Modes: No lock / 60s after 10 attempts / 15 mins after 10 attempts
Data I/O Bus: Bi-directional: 3 additional readers / 1 split-decoder
Dimensions: 169 x 46 x 24mm
Door Chime: 1A / 24VDC (N.O. relay, dry contact)
Door Lock Control: Toggle / Time: 1 ~ 99,999 seconds
Ingress Protection: IP55 (dust protected & water ingress resistant)
Material & Finish: Matte grey ABS plastic / Black gloss front
Maximum User Access: 1000 (user) codes, keyfobs, cards / 1 super-user code
Operating Current: 60mA (standby) / 100mA (active)
Operating Environment: -20°C ~ 70°C / RH95% (max)
Power Input: 12VDC
Solid State Door Lock: 2A / 24VDC
Tamper Switch: 50mA / 24VDC (N.C. relay, dry contact)
Weight: 0.16kg
Warranty (Years): 1
Shipping Weight and Dimensions
Includes product and packages
Width: 115mm
Height: 53mm
Depth: 200mm
Weight: 0.30kg
