Product Summary

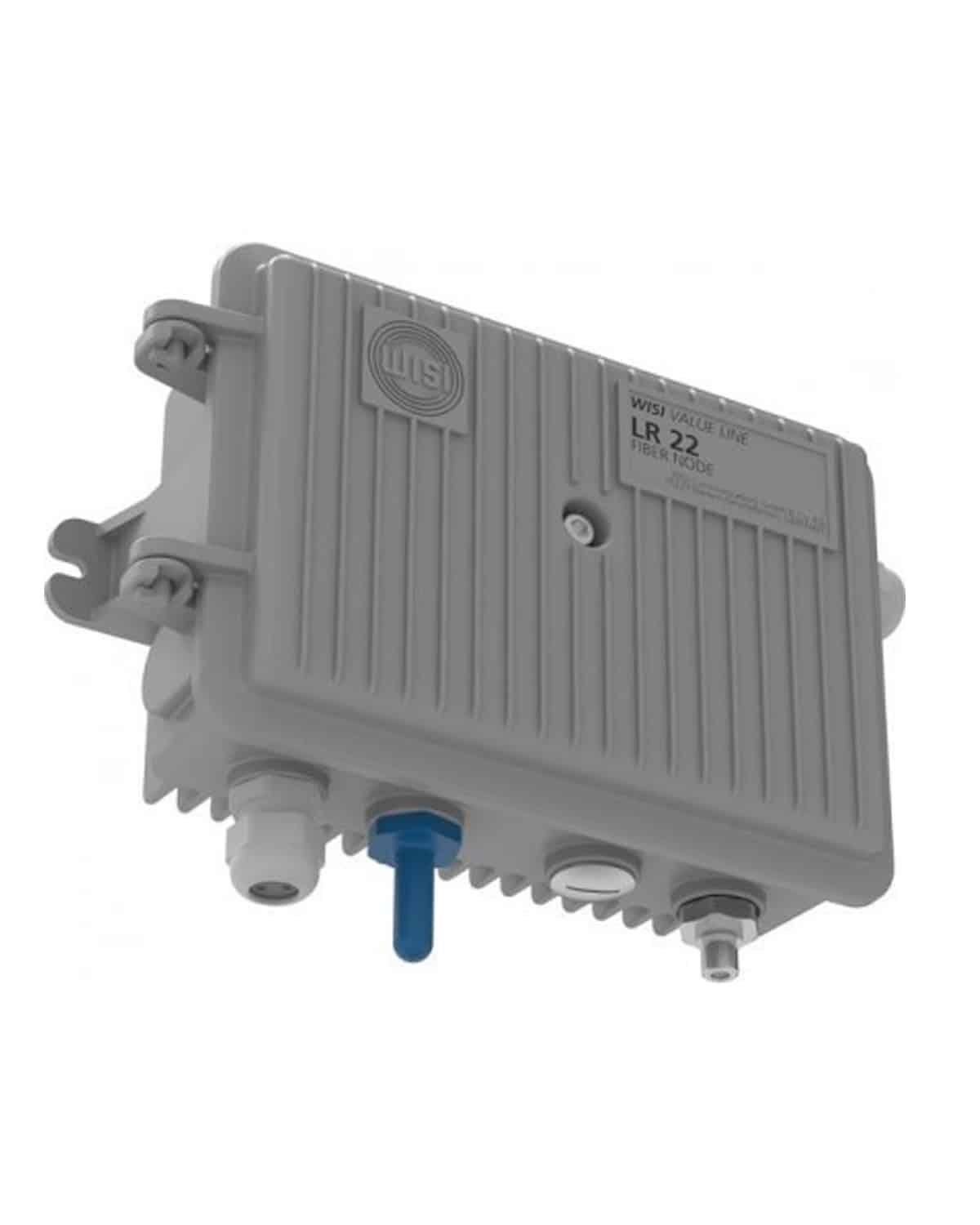

The LR22-2001 is a high output (109dBuV) 230V AC powered fibre optic receiver with a waterproof and RF-screened die-cast housing. The LR22 is perfect for use in harsh environments such as pedestals and other types of outdoor enclosures. Two way tapped or split output available by using XM25B0044 (4dB/4dB), XM25B0082 (8dB/2dB) and XM25B0131 (13dB/1dB) (sold separately). 14MM-ZG28 required to adapt to 'F' type outputs or 14MM-ZG01 for 5/8 output. Bluetooth control using Android devices for easy setup. (14MM-LB01 antenna required, sold separately.)
Features and Benefits
High RF output level of 109 dBμV for a full DOCSIS 3.1 load in FTTC or FTTB networks
All settings (gain, slope etc.) via WISI Bluetooth app or by OH41 hand controller
Pluggable output splitters/taps for flexible configuration of the two RF outputs (sold separately)
Optical ALC for regulated output levels with separate fibre input and output interfaces (independent fibre required for upstream use with optional LT22 transmitter modules)
DOCSIS-3.1-compliant frequency range: downstream up to 1.2 GHz, upstream up to 204 MHz (depending on diplexer)
IP66 rated with operating temperature range -20 to +55°C
Specifications
Downstream
Optical Input Power: -8...+2 dBm
Wavelength: 1270...1610 nm
Frequency Range: 85...1218 MHz (depending on diplexer)
Noise Current Density: < 4,5 pA/√Hz
Attenuator Downstream: 0...20 dB (0,5 dB steps)
Equalizer Downstream: 0...15 dB (0,5 dB steps)
Outputlevel 10 dB Slope(121 x QAM256), (EN60728-3-1): 109 dBμV (BER <1 exp-9), (@ 2,5% OMI)
Outputlevel Flat(121 x QAM256), (EN60728-3-1): 107 dBμV (BER <1 exp-9), (@ 2,5% OMI) Amplitude Response: ±0,75 dB Test Point: -20 dB RF Return Loss: > 18 dB (-1 dB/oct., min. 14 dB)
Optical Return Loss: > 40 dB
Interfaces
Optical connectors: SC/APC (see order code)
RF Interfaces: 2x PG11 (75 Ohm)
Bluetooth antenna LB 01: 1x PG11
User Interfaces
Status LED Downstream: Optical input power
Status LED Upstream: Laser activity
Management Ports RJ11: 1 pcs. (for handset OH 41)
Remotely Controlled Parameters via FSK: DS on/off, US on/off, ICS 0/-6/-45 (with optional Rx module)
Bluetooth Version: 4.0 / LE
Bluetooth Profiles: GATT
Bluetooth Transmit Power: ≤ 0 dBm
Bluetooth Frequency: 2.4 GHz
Bluetooth App Compatibility: Android 4.3 or higher
General Data
Supply Voltage: LR 2x x 2xxx: 180...264 V AC, LR 2x x 6xxx: 27...65 V AC
Power Consumption Max.: 16 W
Output Impedance: 75 Ω
Dimensions (width x height x depth): 232 x 145 x 86 mm
Electro Magnetic Compatibility(EMC): EN 50083-2
Protection Class: IP 66
Ambient Temperature: -20...+55 C
