Product Summary

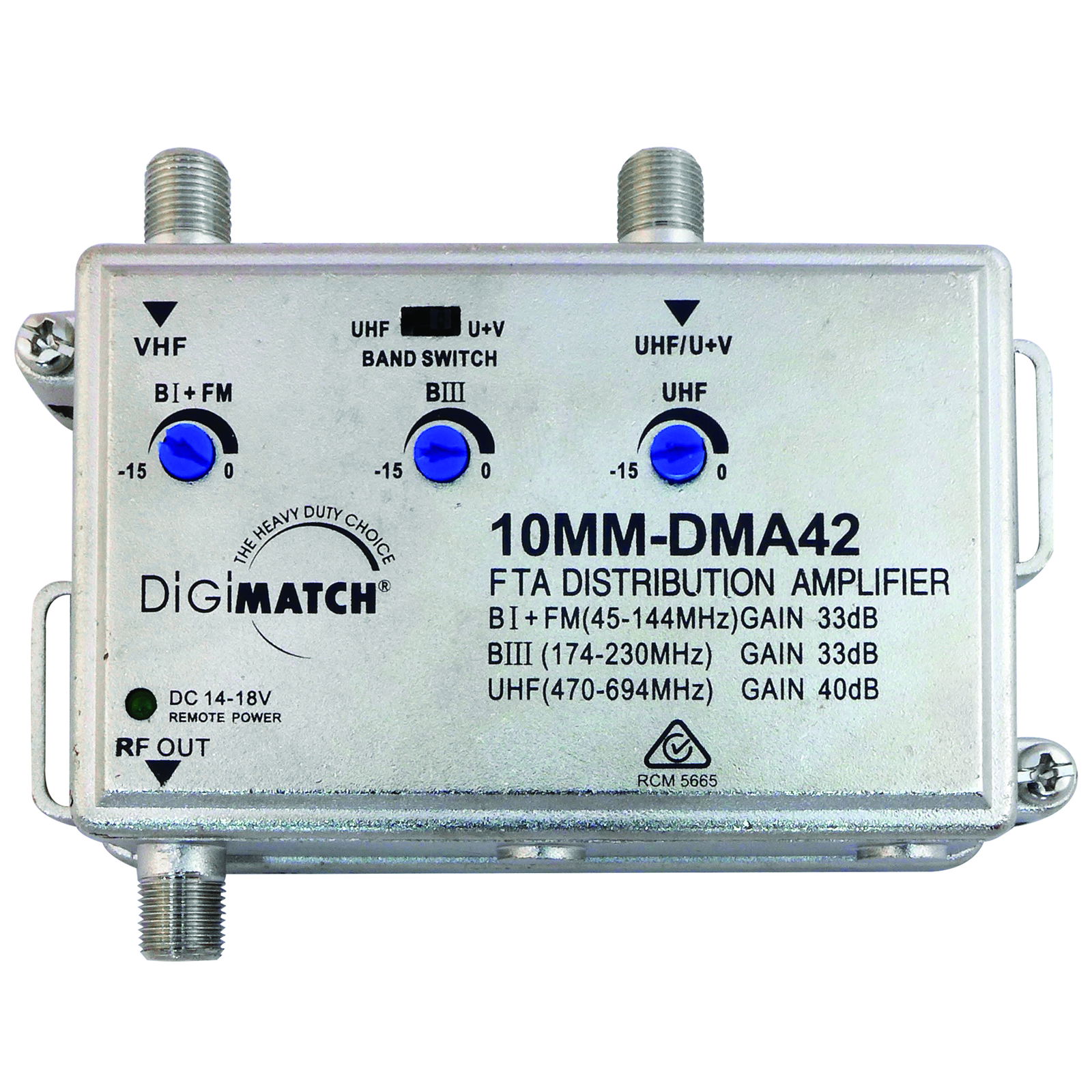

The 10MM-DMA42 is a 4G/5G filtered multiband remote powered distribution amplifier for FM, VHF and UHF signals. The DMA42 features 3 separate FM, VHF and UHF inputs and has independent gain controls with up to 15dB of adjustment for each. In addition, VHF and UHF can be combined into one input using the built-in sector switch. With a maximum gain of 40dB for UHF, 33db for VHF and 33dB for FM, the DMA42 is a powerful but compact amplifier to keep in your stock for that time of need.
Features and Benefits
Multiband remote powered amplifier with maximum 40dB UHF and 33dB VHF and FM gain with independent 15dB gain adjustment per band.
Switchable inputs for separate UHF & VHF or UHF/VHF combination
Separate gain controls for Band 1 & FM, Band 3 & UHF
Die-cast metal casing for excellent heat dissipation
Built in 4G/5G LTE filter @ 694MHz
14V DC power supply included

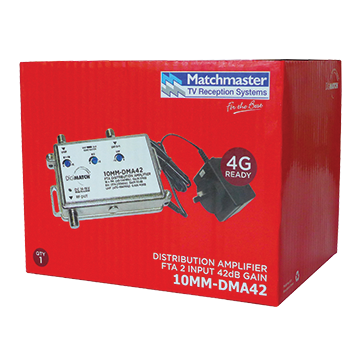

Pack Quantity
Inner: 1 box of 1 piece
Outer: 1 carton of 15 boxes (15 pieces)
Bulk: 1 carton of 2 cartons (30 pieces)
Additional information
| For Bulk Orders Please Call: | |
|---|---|
| Type | |
| Brand | |
| Supplier | MATCHMASTER |
| EAN |
