Product Summary

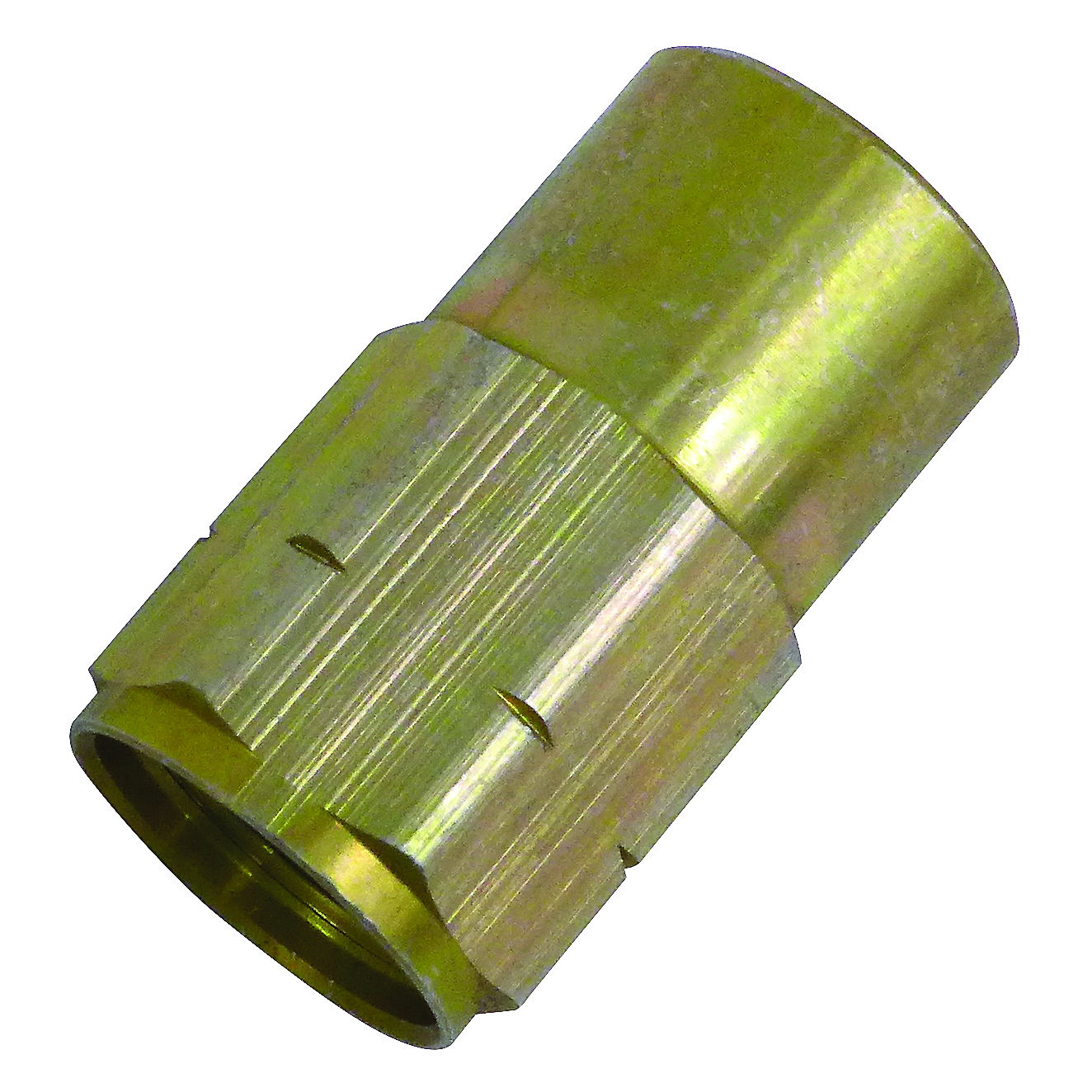

The 18MM-T3 is a 75 Ohm capacitive female terminator for use in networks with AC voltage in the terminated line. Commonly used CATV network systems to complete the end of line cables and unused RF output and throughput ports. Terminators are necessary on the end of line connections to prevent a signal from returning up the line causing additional noise and interference.
Features and Benefits
75 Ohm female housing terminator for use on CATV hard-line taps and splitters where ports may have voltage present
1.0 KV universal female terminator for 5/8-24 entry ports
Blocks 60 cycle AC and terminates RF signals
Integrated O-ring for waterproof connections
Suitable for 5MHz to 1300MHz frequency range
Operating Voltage Rating 90 Volts (@ 60 Hz continuous AC)
Pack Quantity

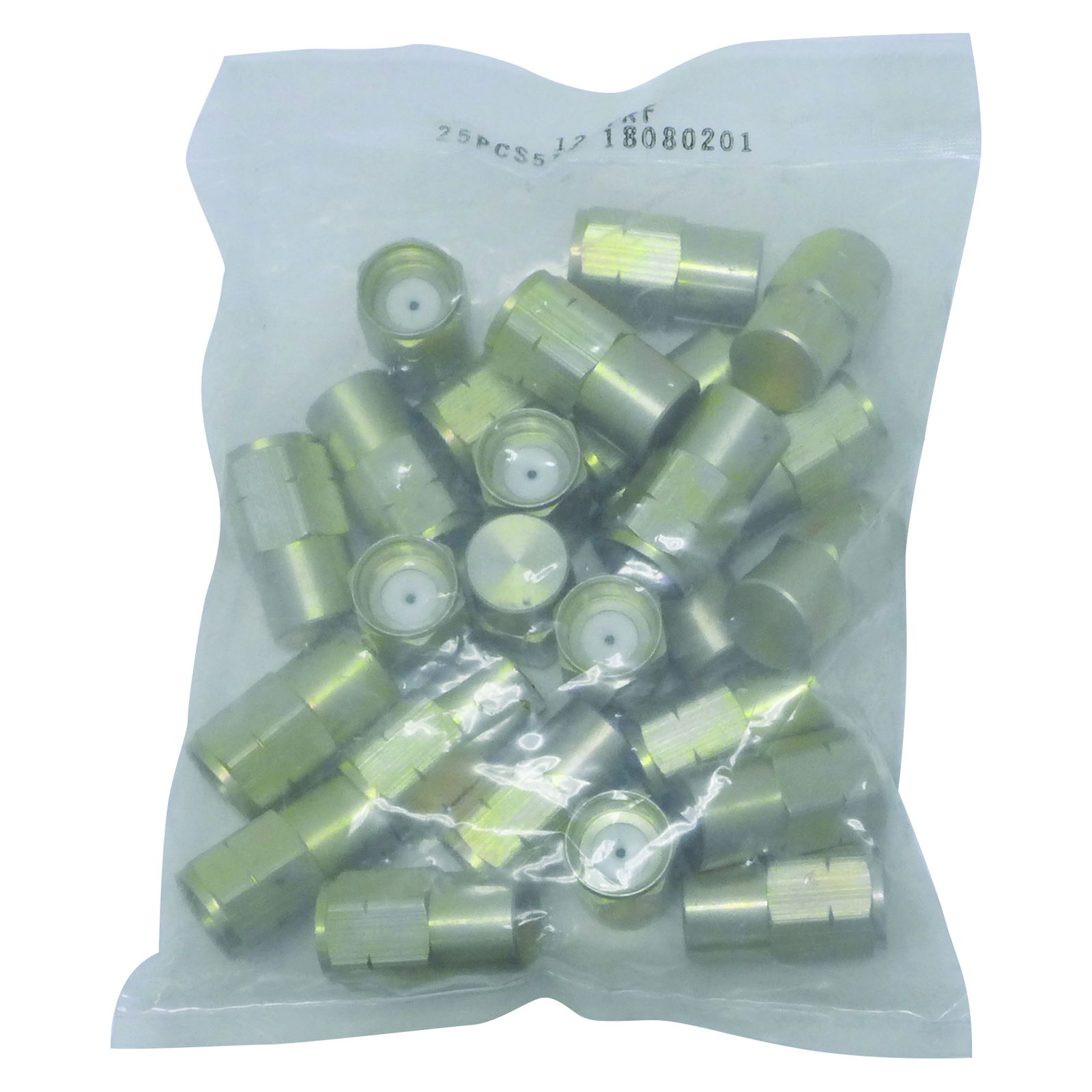

Inner: 1 bag of 25 pieces
Specifications
Bandwidth: DC~ 3GHz
Return loss: >25dB @ 1GHz
Temperature range: -40? to +60?C
Impedance: 75 Ohms
Interface: Meet SCTE IPS SP 501
Insertion loss: <0.2dB @1GHz
Additional information
