Product Summary

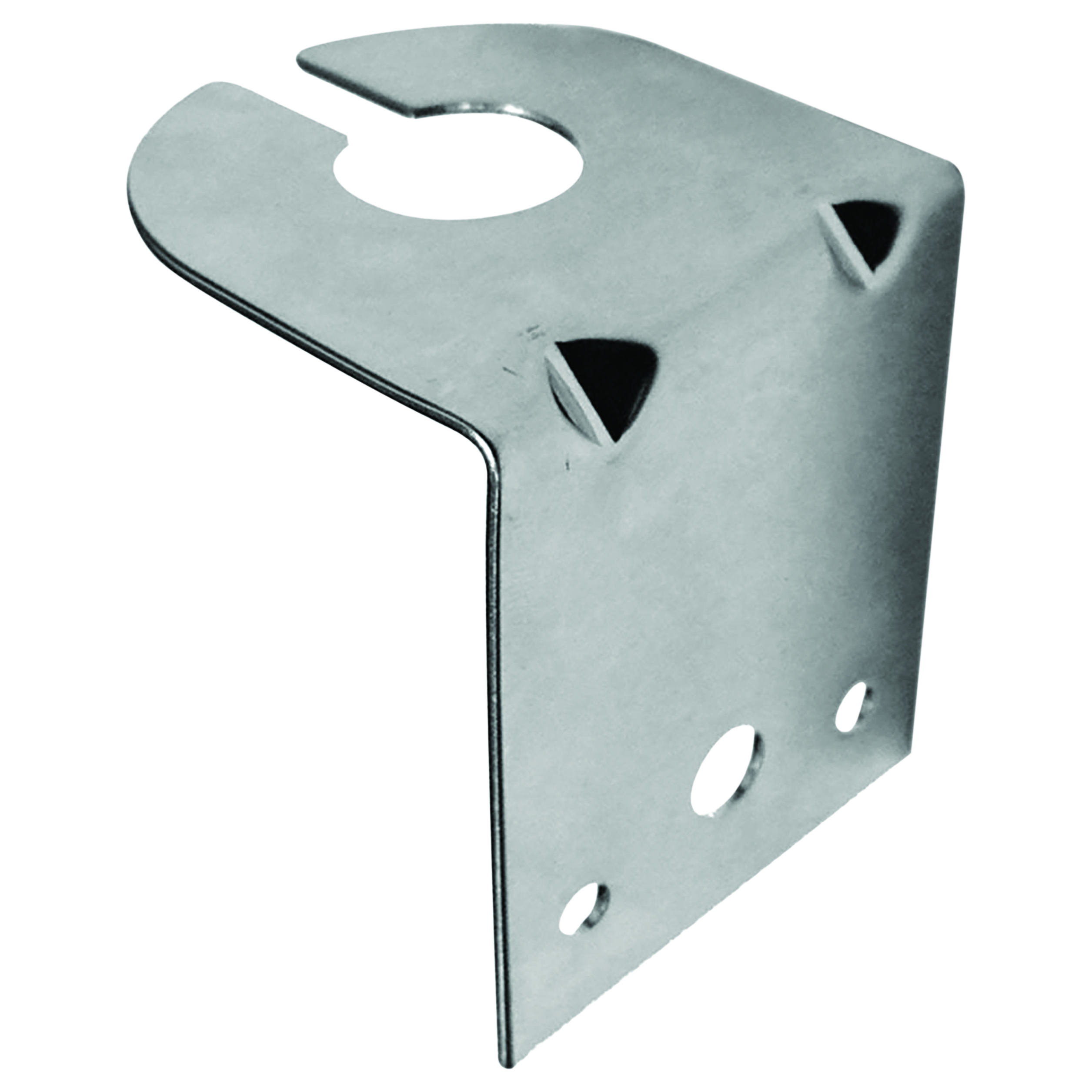

The 56MM-LBV-LW is a compact "L" bracket for mounting UHF, VHF and cellular antennas to a vehicle's bonnet or boot. Marine-grade electropolished stainless steel for corrosion resistance and lightweight antennas.
Features and Benefits
Stainless steel low profile mount for lightweight antennas to mount to either a vehicles bonnet or boot
1.1mm thick stainless steel to fit into the tightest gaps
16mm mounting hole with cable channel and three screw mounting points
Cost-effective mounting solution
Specifications
Mounting Holes: 2 x 4 mm 29mm C/C + 1 x 7 mm
Antenna Mounting: 16mm
Material: Nom 1.1 mm Stainless Steel Electropolished
Back Plate: 45 mm (W) x 52 mm (H)
Antenna Centre to Back: 26.5 mm
Cable Entry: 5.5mm
