Product Summary

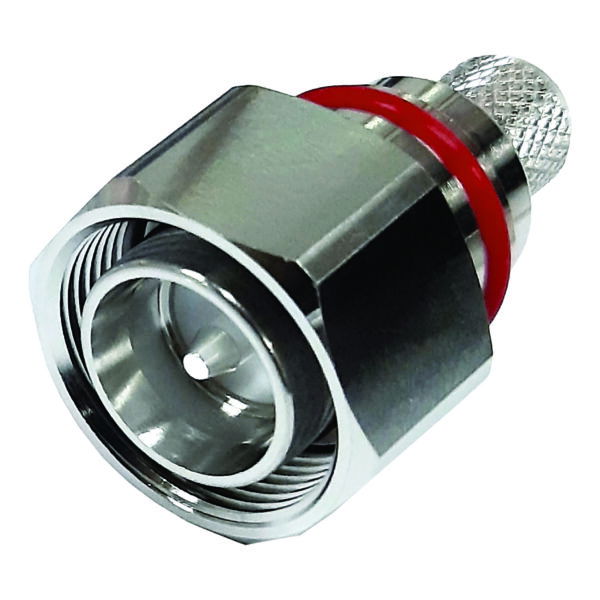

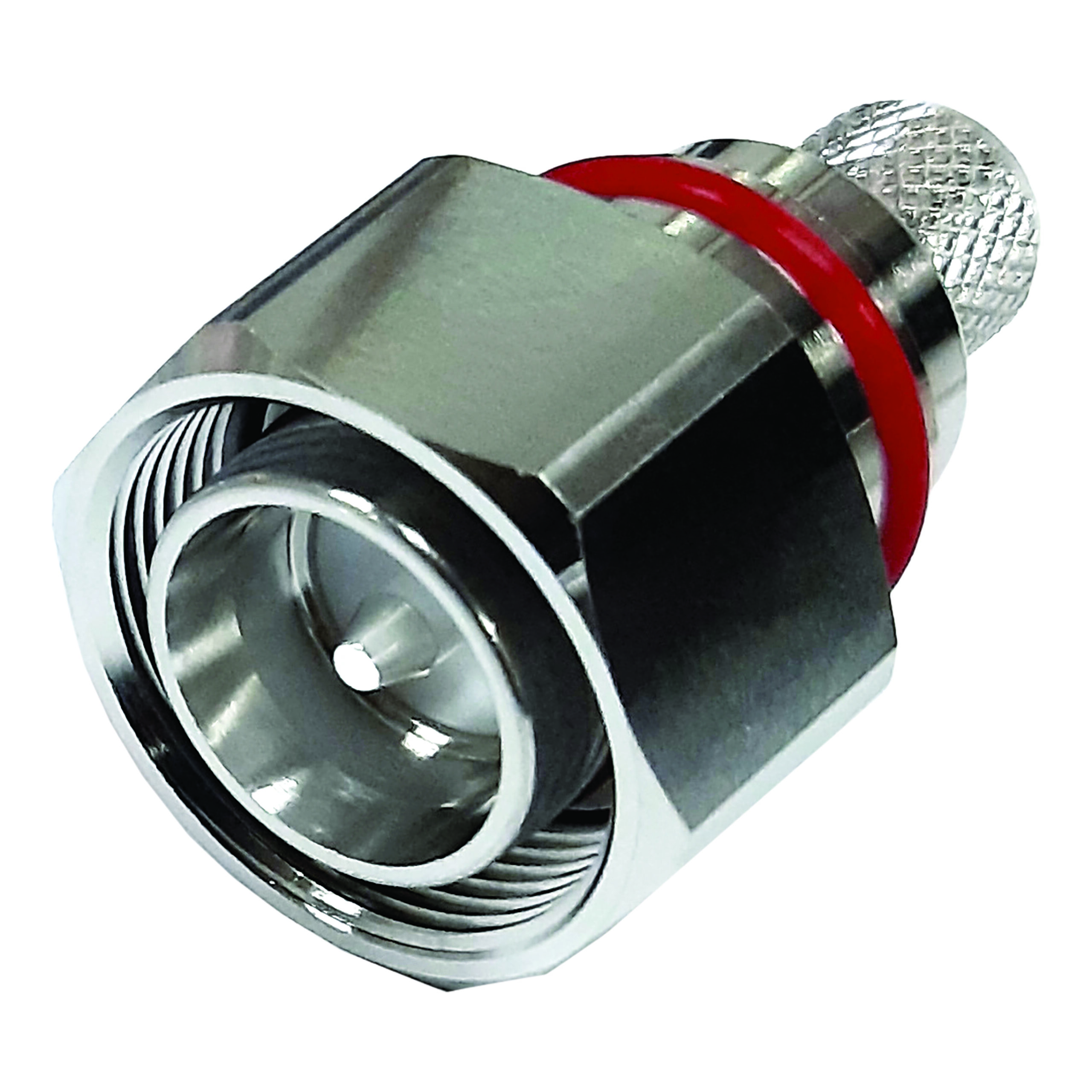

The 43-10P is a straight 4.3-10 connector for 10mm solid core 50ohm coax LL400/LMR400 and similar spring finger inner & crimp outer. Teflon (PTFE) dielectric and internal silicon rubber gasket for waterproofing
Features and Benefits
4.3-10 type connector for use with 56MM-E400 series cable
Impedance: 50? nominal with DC-6GHz frequency range
Temperature range of -45 to +125 degrees celsius
Brass body with SUCO plating and beryllium copper silver-coated centre pin
Internal silicon rubber gasket for waterproofing
Passive intermodulation: (2 x 20W) -150dBc
Additional information
| For Bulk Orders Please Call: | |
|---|---|
| Type | |
| Brand | |
| Supplier | MATCHMASTER |
| EAN |
