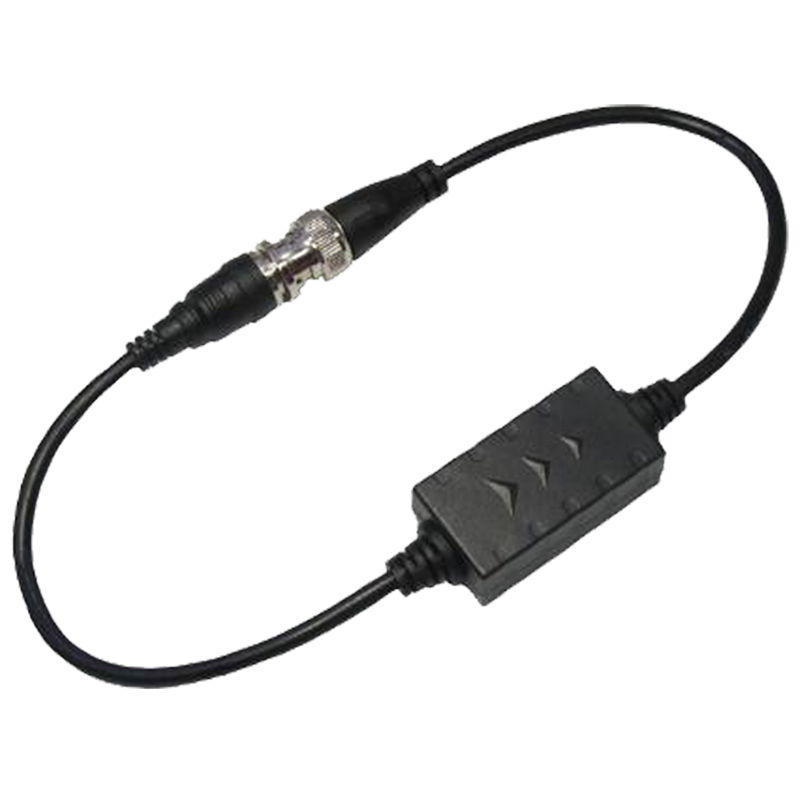

The VSGLI BNC Video Ground Loop Isolator from Securview™ effectively prevents image interference from HDCVI / TVI / AHD caused by ground loops and other sources of noise including; data signals, video signals, nearby power, telephone signals, fluorescent lights, transformers and more.
Product Features:
• 75 ohm BNC Male to 75 ohm BNC Female input / output
• Isolation Voltage: 800VDC
• Insulation Resistance: >100M ohm

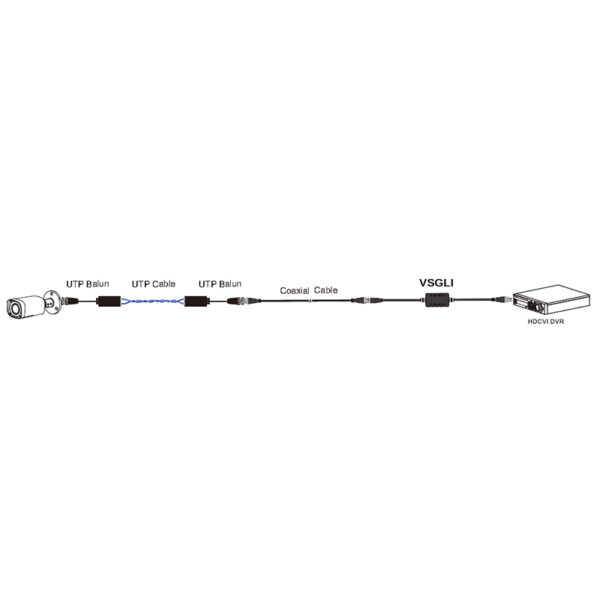

• Apply to a junction box
• Supports 720p, 1080p and 4K HDCVI cameras
• Compatible with HDCVI / TVI / AHD

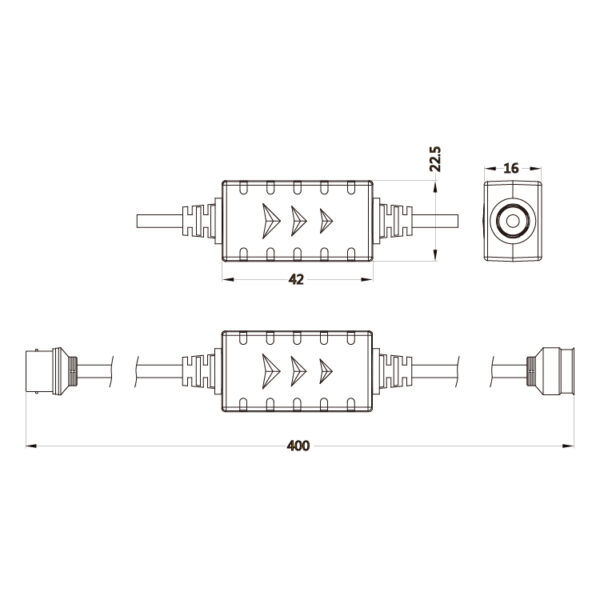

• Dimension: 42 x 23 x 16mm (400mm length)
SPECIFICATIONS
Warranty (Years): 1
Shipping Weight and Dimensions
Includes product packaging
Width: 90 mm
Height: 25 mm
Depth: 60 mm
Weight: 0.05 kg
Additional information
| Manufacturer | |
|---|---|
| Weight | 0.05 |
