Product Description

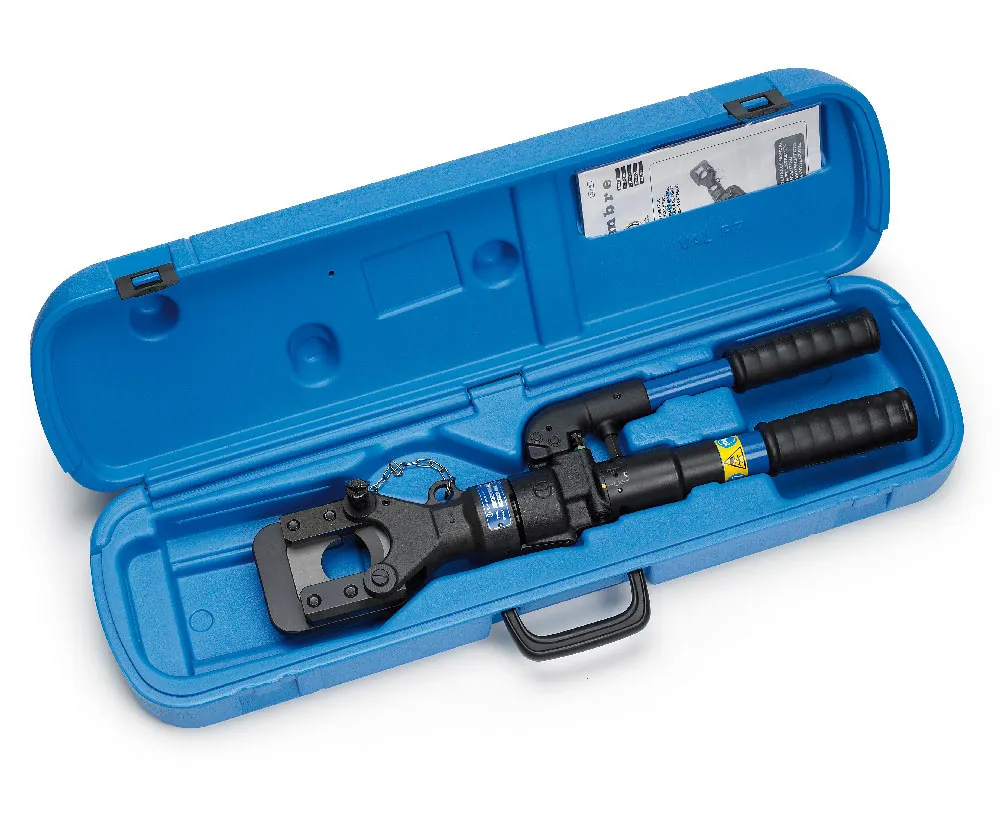

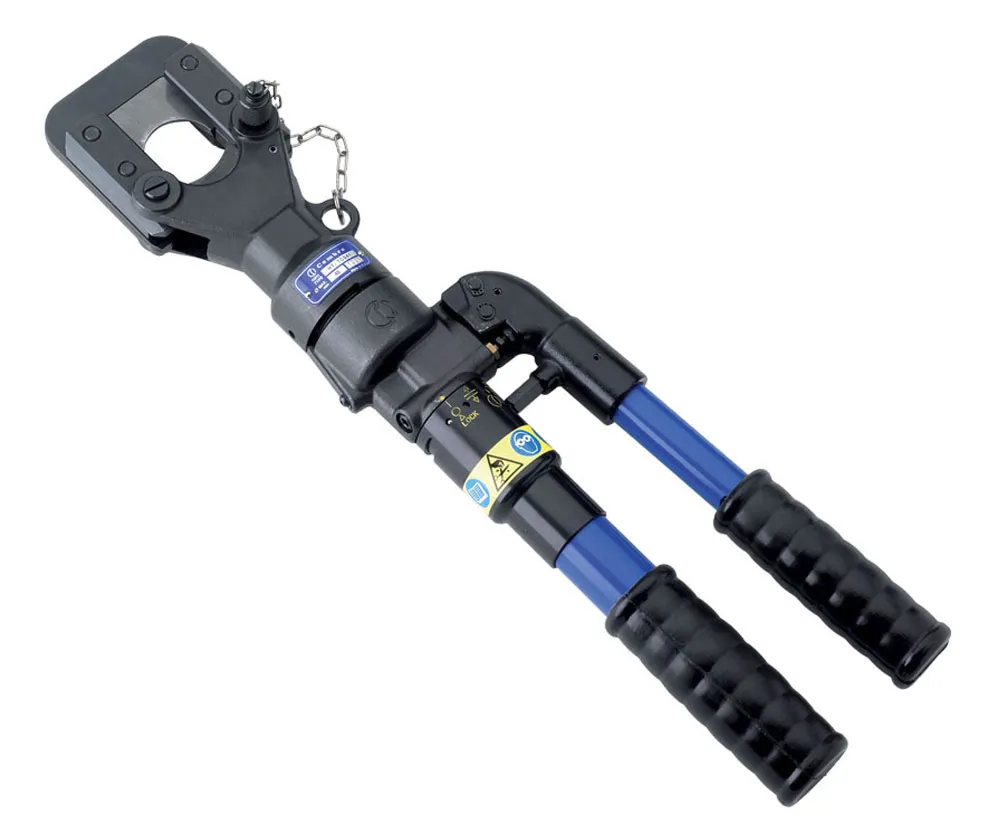

Hydraulic Cutting Tool for Steel Wire and ACSR 45mm OD
This Cembre hand operated hydraulic tool is specifically designed to cut copper, aldrey, aluminium, aluminium-steel cables, and steel ropes, aluminium and steel rods having a max overall diameter of 45 mm.
This new model is even more self-contained, robust, and sturdy.
The blades are manufactured from high strength special steel, heat treated to ensure a long service life.
The head can rotate through 180 degrees, enabling the operator to work in the most comfortable position, and can easily be opened to allow cutting of running cables.
The HT-TC041N features an automatic safety valve to bypass oil when reaching maximum pressure; a pressure release device can also be operated at any stage of operation.
HT-TC041N Hydraulic Cutting Tool Features:
- Specifically designed to cut copper, aldrey, aluminium, aluminium steel cables and ropes, aluminium and steel rods
- Maximum diameter 45mm
- High strength special steel blades are heat treated to ensure long service life
- 180 degree rotating head enables operator to work in the most comfortable position
- Automatic safety valve bypasses oil when reaching maximum pressure
- Pressure release device can be operated at any stage of operation
Technical Characteristics
- Type of Action: Cutting
- Max. Cutting Diameter: 45mm
- Nominal Pressure: 700 bar
- Width: 144mm
- Length: 550mm
- Weight: 5.8kg
Additional information
| For Bulk Orders Please Call: | |
|---|---|
| Brand | |
| MPN | |
| Type | |
| Supplier | Cabac |
