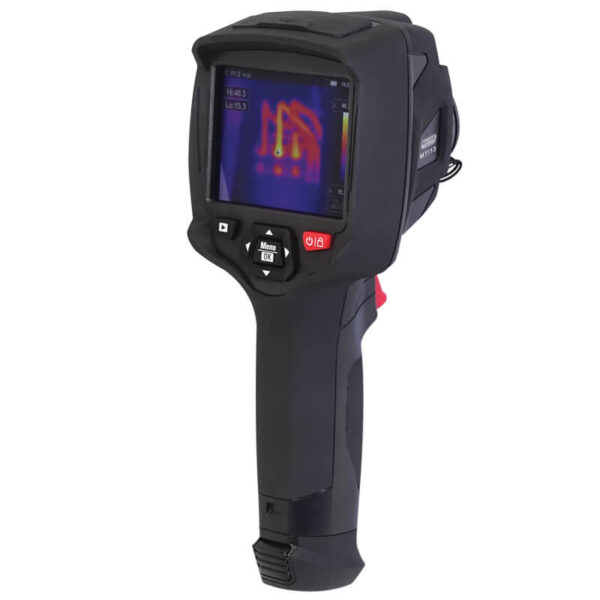

Detecting a hot connection in a distribution board has never been this easy. The MTi13 is focus free and has a large touch screen that makes detecting and analyzing hot spots quick and easy. This lightweight thermal imager with 80?80 pix resolution at 50Hz offers real-time detection of hot spots ideal for maintenance electricians. The Wi-Fi functionality allows the user to transfer live thermal information to a smart device for analysis. It features adjustable emissivity, temperature ranges from -20?C to 650?C, 3 moveable spots and area temperatures, centre spot, automatic Hot and Cold spot markers; and line measurement. The instrument comes supplied in a hard carry case and includes a charging base, microSD card and Type-C data cable.
80?80 Pixel Thermal Detector
6,400 points real temperature
50Hz Image Frequency
Hot, Cold and Centre Spot Temperature
3 Area and 2 Line Analysis
3 Manual Spots
Hot, Cold and Centre Spot Temperature
3.5? TFT LCD display, Touch Screen
Instant share & save via WiFi to PC, iOS and Android smart devices
Colour Pallets include Iron, Rainbow, Grey, Grey Inverted, Brown,
Blue/Red, Feather, Zone Alarm
Rugged and industrial design casing
Easy to use functions
SPECIFICATIONS
Imaging and Optical Data Range
*Function: Field of View Range: 21? x 21?
*Function: Spatial Resolution (IFOV) Range: 4.53mrad
*Function: Thermal Sensitivity/NETD Range: 0.05?C at 30?C (86?F) / 50mK
*Function: Image Range Range: 50Hz
*Function: Focus Mode Range: Auto Focus
*Function: Zoom Range: 1 -32 x continuous, digital zoom
*Function: Focal Length Range: 7,5mm
*Function: Focal Plane Array (FPA) / Spectral Range Range: Uncooled microbolometer / 8-14?m
*Function: IR Resolution Range: 80 x 80
Image Presentation Range
*Function: Display Range: 3.5? LCD, 640 x 480 pixels
*Function: Image Modes Range: IR Image, Pic-in Pic, Visual image, Fusion
*Function: Picture in Picture Range: IR area on visual image or visual image on IR
*Function: Colour Pallets Range: Iron, Rainbow, Grey, Grey inverted, Brown, Blue/Red, Hot/Cold, Feather, Above, Below & Zone Alarm
*Function: Measurement Range:
*Function: Temperature Range Range: Low -20?C to 150?C, High 0?C to 650?C
*Function: Temperature Accuracy Range: ? (2?C or ? 2%)
Measurement Analysis Range
*Function: Spot Range: Centre spot, 3 Adjustable Spots
*Function: Line Range: 2 lines (horizontal or vertical)
*Function: Area Range: 3 Area with max/min/average
*Function: Automatic Hot/Cold detection Range: Auto hot or cold markers
*Function: Emissivity Correction Range: Variable 0.01 to 1.0, Standard Emissivity Table
*Function: Measurement Corrections Range: Emissivity, Reflective temp, Ambient temp, Distance compensation, Relative humidity, Infrared compensation
Storage Range
*Function: Videos Range: 4Gbytes Micro SD card
*Function: Videos Format Range: Standard MPEG-4 encode, 640?480 at 30fps, on memory card >60 minutes
*Function: Videos Storage Mode Range: IR/Visual images: simultaneous storage of IR and visual images
*Function: Images Format Range: Standard JPEG, or HIR files including measurement data, on memory card >6000 pictures
*Function: Image Storage Mode Range: IR/Visual images: simultaneous storage of IR and visual images
*Function: Digital Camera Range:
*Function: Built-in Range: 2 Megapixels
*Function: Built-in Digital Lens Data Range: FOV 65?
Data Communications Interfaces Range
*Function: Interfaces Range: USB-Type C
*Function: USB Range: Data and Live Video transform between camera and PC
*Function: Wi-Fi Range: 802.11, transfer images and Realtime video stream
*Function: Enclosure Range: Over Moulded casing
*Function: Input System Range: DC 5V
*Function: Power Source Range: Lithium-ion, 4 hours operating time
*Function: Charging System Range: In camera (AC adapter)
*Function: Weight Range: 500g
*Function: Dimensions Range: 224 x 77 x 96mm
*Function: Safety Specs Range: EN61010-1
Accessories
Hard Carry Case
Rechargeable Battery
Charging Base
MicroSD Card
Type-C Data Cable
Instruction Manual
