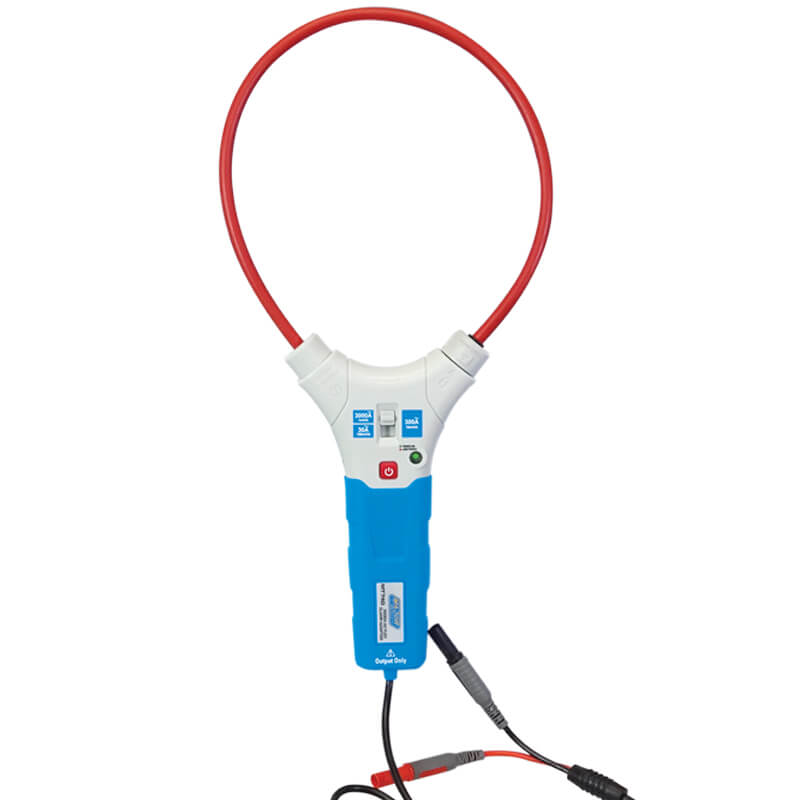

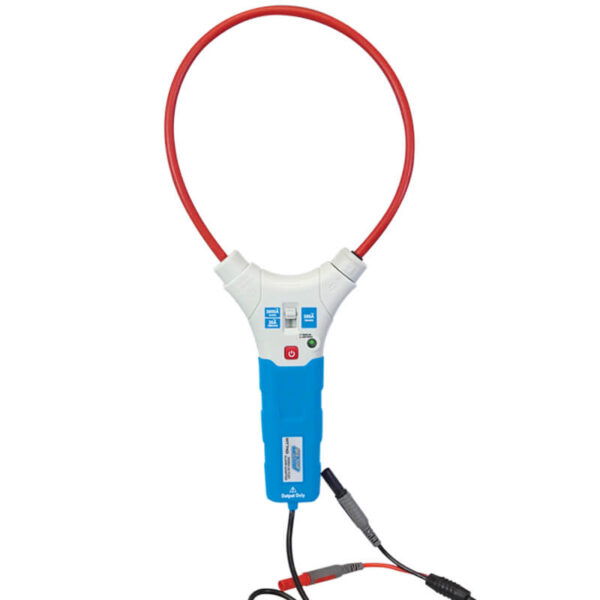

The MT740 is a 3000A True RMS AC Flex Clamp adaptor that supplies voltage output to universal voltage meters. With a 7.5mm coil diameter to accommodate ease of measurement in a tight space and is ergonomically designed for one handed operation. The MT740 Flex Clamp Adaptor is CAT IV rated 600V and CAT III rated for 1000V.
CAT IV 600V and CAT III 1000V
?180mm head cable length
3000A AC current measurement
7.5mm coil diameter
Slide switch range change
Low battery LED indicator
Ergonomically designed
SPECIFICATIONS
*Function: AC Current Range: 30A- 3000A Resolution: 0.1A Accuracy: ?(3.0% + 5 digits)
*Function: AC Bandwidth Range: 50Hz to 60Hz
*Function: Jaw Size Range: ?180mm
*Function: Enclosure Range: Moulded case
*Function: Low Battery Indication Range: Yes
*Function: Batteries Range: 2 x AAA
*Function: Weight Range: 210g
*Function: Dimensions Range: 180mm x 106mm x 28mm
*Function: Safety Specs Range: IEC61010-1 CAT IV 600V
