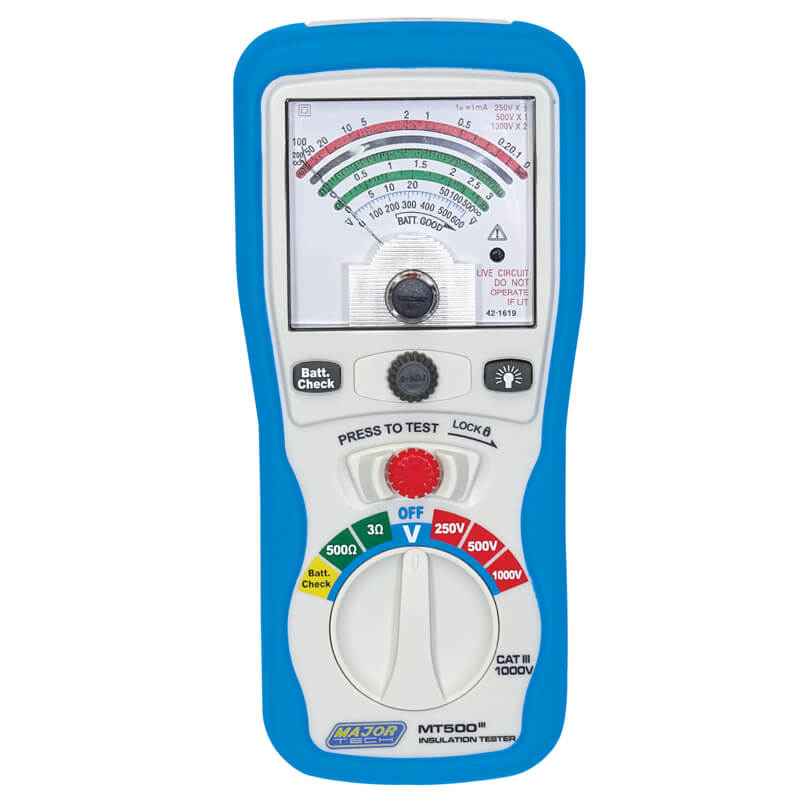

Major Tech 250/500/1000V Analogue Tester MT500

The MT500 is a rugged, compact and easy to use Insulation and Continuity Tester. The instrument offers three insulation test ranges: 250V, 500V and 1000V, a 3? continuity range and a 500? resistance range. This meter is not only equipped with a ?Live Circuit Warning? but also displays the actual AC voltage measurements of the mains supply. The scale has a backlight which is ideal when working in dimly lit environment.

CAT IV 600V and CAT III 1000V

3 test ranges 250V-500V-1000V

600V AC voltage range

Live Circuit warning and buzzer

Data Hold function

1mA output current on insulation test

200mA short circuit on continuity range

Automatic discharge after test

Front panel zero adjustment for test lead resistance

Lock down Test Button for continuous use

Hands free strap and magnet supplied as standard accessories

Rubber overmould housing

Illuminated display

SPECIFICATIONS

*Function: AC voltage Range: 0 ? 600V Resolution: 20V Accuracy: ?(5.0%)

*Function: Resistance Range: 3? ? 500? Resolution: 0.05? Accuracy: ?(3.0%)

*Function: Insulation resistance 250V Range: 250V Resolution: 0 ? 100M? Accuracy: ?(5.0%)

*Function: Insulation resistance 500V Range: 500V Resolution: 0 ? 200M? Accuracy: ?(5.0%)

*Function: Insulation resistance 1000V Range: 1000V Resolution: 0 ? 400M? Accuracy: ?(5.0%)

*Function: Short circuit current Range: 1.3mA

*Function: Overrange indication Range: Yes

*Function: AC Bandwidth Range: 40Hz ? 400Hz

*Function: Digital Display Range: Analogue Display

*Function: Continuity Range: Yes

*Function: Auto discharge Range: Yes

*Function: Input impedance Range: >1.2M? VAC

*Function: Data Hold Range: Yes

*Function: Back Light Range: Yes

*Function: Enclosure Range: Double moulded

*Function: Low battery indication Range: Yes

*Function: Batteries Range: 6 x AA

*Function: Safety Specs Range: IEC61010-1 CAT IV 600V

Accessories:

Test Leads

Black Crock Lead

Magnetic Strip

Carrying Case

Adjustable shoulder strap

6 x AA Batteries

Instruction Manual
