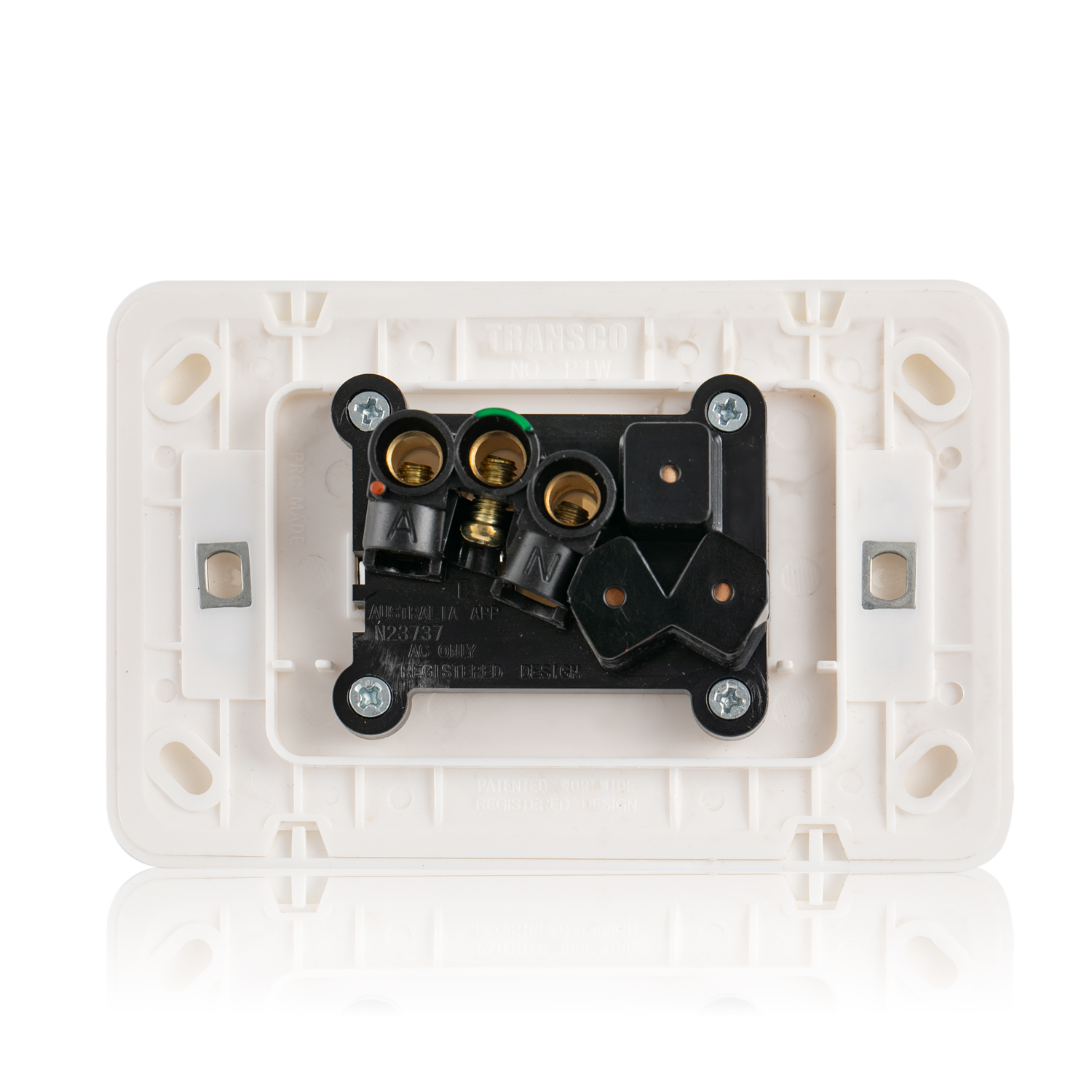

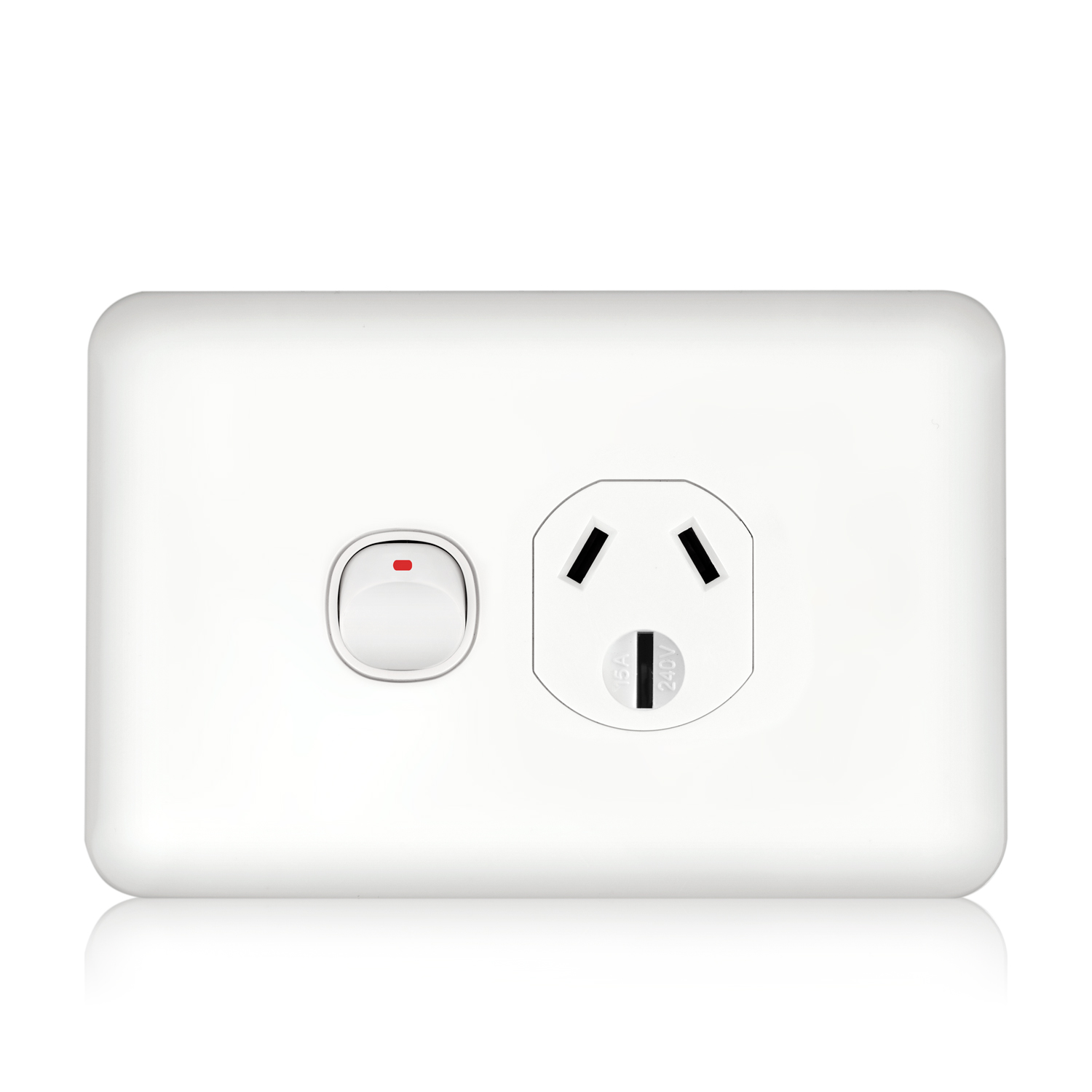

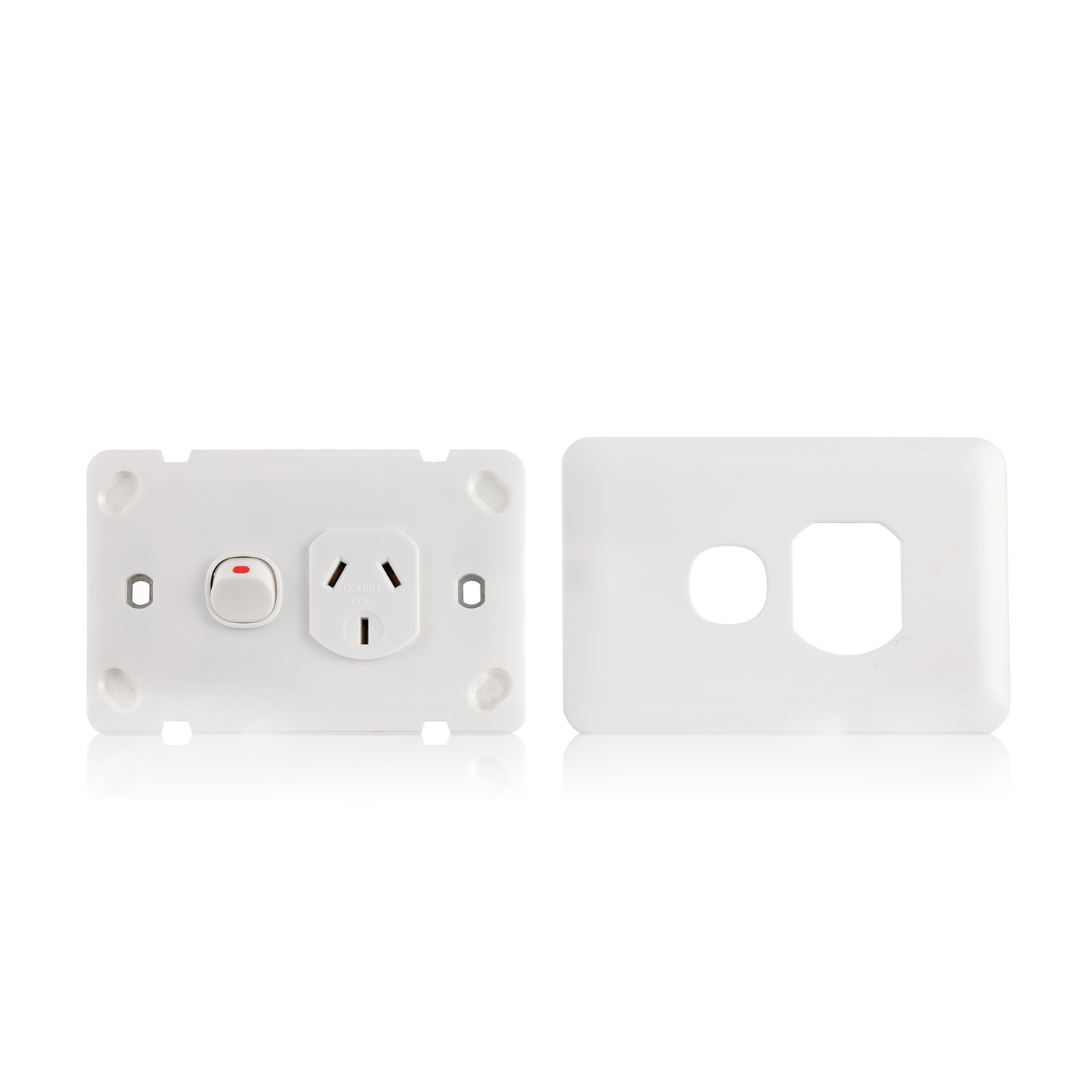

The power current is AC with a single-phase, rated at 10A, 15A, or 20A and 240V. The structure features a molded top cover and underbody made of impact-resistant polycarbonate, available in electrical white or black. It has a single switch pole, with socket configurations of 1, 2, or 3 gangs and socket outlets of 1 or 2. The unit includes three pins (active, neutral, earth), a flat earth pin, a copper ferrule x3 cable connector, and accommodates a cable size of 2.5mm x3. With dimensions of W72mm x L116mm x D20mm, it is designed for horizontal on-wall mounting with fixing centers of 84mm, fits all general flush mount brackets, and is compatible with Transco Wafer Series mounting flanges only. The product is made in accordance with AS/NZS3100, AS/NZS3112, and AS/NZS3133 standards.
Additional information
| Type | |
|---|---|
| Brand | |
| Supplier | Transco |
