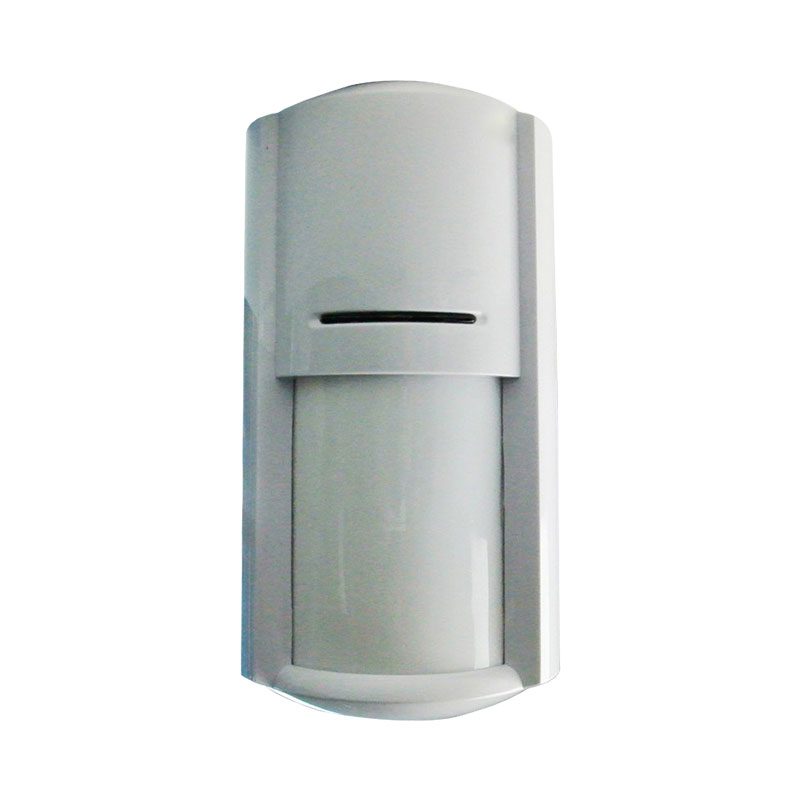

The ALL-PIR3 Wireless Outdoor PIR Sensor is an alarm built for outdoor environments with a wide angle detection range 12 x 12m, pet immunity and weather resistant housing.
Product Features:
• Dual element low noise pyroelectric IR sensor
• 12 x 12m detection range with 110° field of detection
• Pet immunity, up to 20kg
• Optical filter lens with white light immunity, up to 1000lx
• Adjustable microwave detection range
• Temperature auto compensation
• Weather resistant and insect proof housing
• Tamper switch for vandal protection
• 12VDC power supply
• Monitor and receive alerts to your phone with the Smart Life app
SPECIFICATIONS
General:
Detection Range: 12 x 12m range / 110° angle
Wireless Transmit Distance: <80m (open area)
Wireless RF Frequency: 433MHz
Environment:
Power Supply: 12VDC
Standby Current: N/A
Alarm Current: <30mA 12VDC
Operating Environment: -40°C~70°C
Dimensions: 153 x 80 x 58mm
Other:
Microwave Antenna: Patch antenna by GaAs FET dielectric oscillator
Microwave Frequency: 10.525Ghz
Pet Immunity: Yes, up to 20kg
Warm-up Time: <60 seconds
Warranty (Years): 1
Shipping Weight and Dimensions
Includes product and packages
Width: 60mm
Height: 190mm
Depth: 90mm
Weight: 0.60kg
Additional information
| Manufacturer | |
|---|---|
| Weight | 0.6 |
