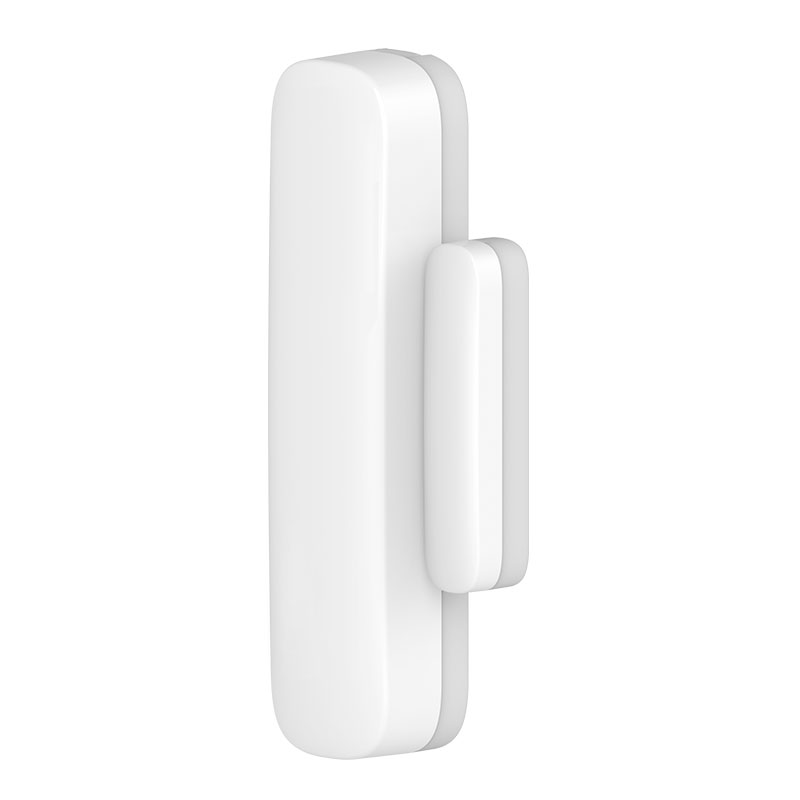

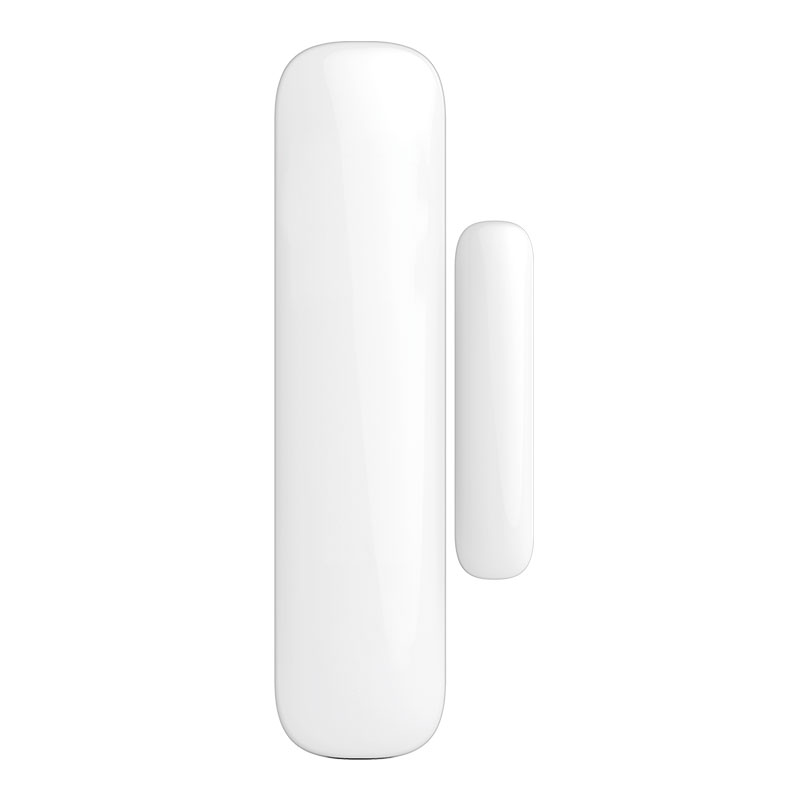

The ALL-RSW2 Wireless Magnetic Reed Switch is an alarm built for indoor environments. It can detect the opening / closing of windows and doors.
Product Features:
• Immediate alarm if the magnet and detector are more than 2cm apart
• The magnet must be mounted 1cm or less from the detector
• Tamper switch for vandal protection
• 1.5VDC power supply, requires 1 x AA LR6 battery
• Monitor and receive alerts to your phone with the Smart Life app
SPECIFICATIONS
General:
Detection Range: N/A
Wireless Transmit Distance: <80m (open area)
Wireless RF Frequency: 433MHz
Environment:
Power Supply: 1.5VDC (1 x AA LR6 battery)
Standby Current: <25μA
Alarm Current: <70mA
Operating Environment: -10°C~55°C / RH <80%
Dimensions: 24.5 x 96.5 x 19.5mm (detector) / 14 x 48 x 11mm (magnet)
Other:
Magnet Gap: 2cm
Warranty (Years): 1
Shipping Weight and Dimensions
Includes product and packages
Width: 60mm
Height: 110mm
Depth: 25mm
Weight: 0.10kg
Additional information
| Manufacturer | |
|---|---|
| Weight | 0.1 |
