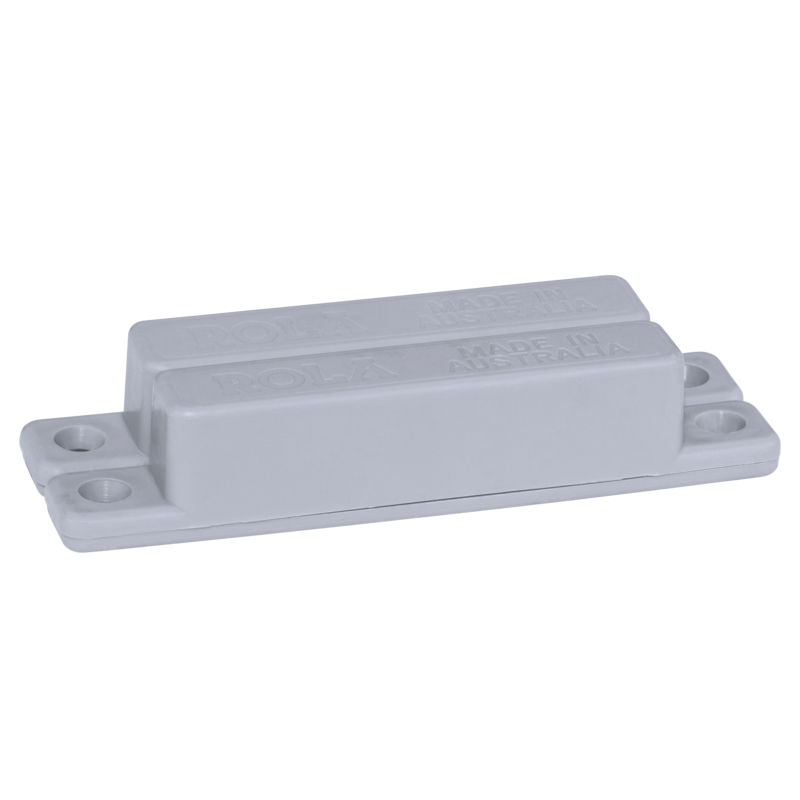

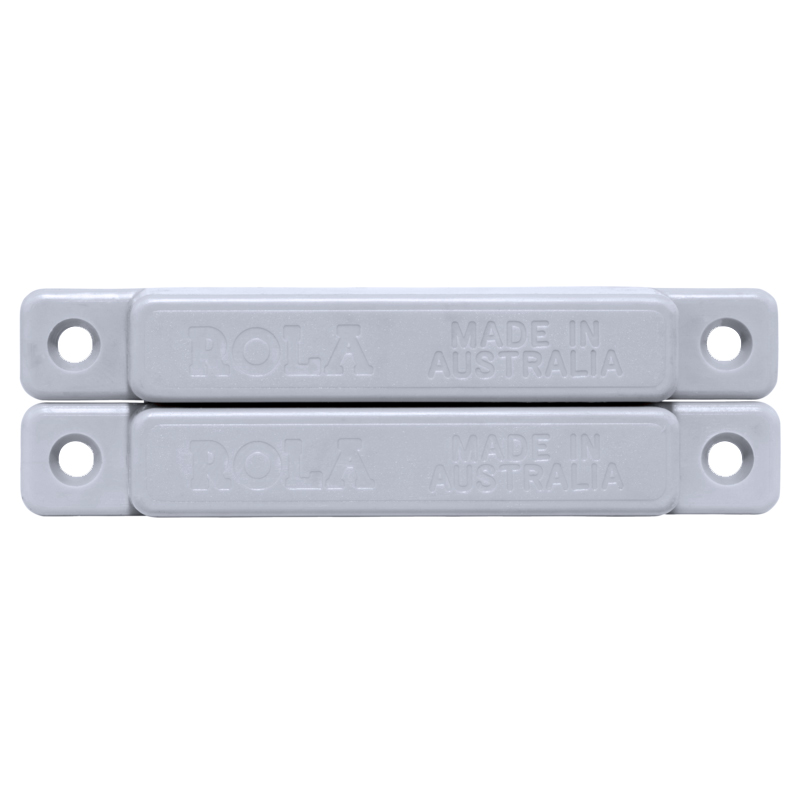

The DSRHDW2 is a surface mount reed switch designed for window and door applications.
Product features:
• Epoxy sealed surface mounted reed switch
• N/C contact, SPST
• Dimensions: 90mm x 13mm x 18mm
• 50mm gap
• White colour
SPECIFICATIONS
Contact: N/C
Dimensions: 90mm x 13mm x 18mm
Gap: 50mm
Max Current: 500mA
Max Rating: 10W
Max Resistance: 0.2Ohm
Max Voltage: 100VDC
Type: Reed Switch
Warranty (Years): 1
Shipping Weight and Dimensions
Includes product packaging
Width: 30 mm
Height: 90 mm
Depth: 20 mm
Weight: 0.04 kg
Additional information
| Manufacturer | |
|---|---|
| Weight | 0.04 |
