The ultimate in low-light and wide dynamic range. The VSIP2MPFBIRLV3 has a large sensor and WDR to provide impressive detail retention in colour in even the most challenging of lighting conditions.
Product features:
• Stream up to 2.0 megapixel (1920 x 1080) at 50fps
• Excellent low light colour performance 0.002 Lux at F/1.53
• 4.1 ~ 16.4mm motorised lens with 104 ~ 33° viewing angles
• Electronic image stabilisation, defog and 4 area privacy masking
• Day/night (auto ICR) with 50m maximum infrared range
• Wide dynamic range (120db) with back/highlight compensation
• MicroSD card slot for at-the-edge recording, up to 128GB
• Supports triple stream and smart detection technologies
• Audio and alarm interface input/output; BNC video output
• ONVIF, PSIA and CGI compliance
• Full metal IP67/IK10 weather & vandal resistant housing
SPECIFICATIONS
Image Sensor: 1/1.9’’ 2.0MP Progressive Scan CMOS
Max. Resolution: Effective Pixels
Effective Pixels: RAM / ROM
RAM / ROM: 1024MB / 128MB
Ultra Low Light Colour: Yes
Min Illumination: 0.002 Lux/F1.53 (Color), 0 Lux/F1.53 (IR on)
S/N Ratio: > 50dB
Infrared: 50m
Infrared System: 4 x Infrared LED, 50m range, Auto/manual on/off control
Lens Type: Motorised Varifocal
Lens / Iris: 4.1 ~ 16.4mm
Field of View: Horizontal: 104°~33°, Vertical: 57°~18° (4x Optical Zoom)
Focus: Auto Focus / 0.5m Min. Focus Distance
(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m): 57m (wide) / 137m (tele)
Observe (63px/m): 23m (wide) / 55m (tele)
Recognise (125px/m): 11m (wide) / 27m (tele)
Identify (250px/m): 6m (wide) / 14m (tele)
Resolution: 1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main): 1080p (1 ~ 50fps)
Frame Rate (Sub): D1 (1 ~ 50fps)
Frame Rate (Third): 1080p (1~50fps)
Video Compression: H.265+ / H.265 / H.264+ / H.264
Bit Rate: H.265: 14 ~ 6144Kbps / H.264: 24 ~ 10240Kbps
Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night: Auto (ICR) / Color / B&W
Lighting Compensation: BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA): Yes
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Picture Control: Mirror / Flip (0°, 90°, 180°, 270°)
IVS: Yes
Intelligent Functions: Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Electronic Image Stabilisation, Defog, People Counting, Heat Map
Ethernet: RJ-45 (10/1000 Base-T)
Protocol: Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; IEEE 802.1x; Multicast; ICMP; IGMP; SNMP; TLS
Streaming Method: Unicast / Multicast
Max. User Access: 10 Users / 20 Users
RTMP Support: No
Video Interface: Video Tester Composite Output
Audio Interface: 1 Input, 1 Output / Compression: G.711a, G.711Mu, AAC, G.726
Alarm Interface: 2 Input / 1 Output
RS485: N/A
Edge Storage: MicroSD Card Slot (up to 128GB) / NAS / Local PC
Interoperability: ONVIF / PSIA / CGI
Power Supply: 12VDC / PoE+ (802.3at) (Class 4)
Power Consumption: <13W
Operating Conditions: -40° ~ +60° C / Less than 95% RH
Ingress Protection: Yes
Weather Resistance: IP67
Vandal Resistance: IK10
Series: Ultimate Series
Camera Type: Bullet
Housing: Metal
Pan/Tilt/Rotation: Pan: 0° ~ 360 ° ; Tilt: 0° ~ 90° ; Rotation: 0° ~ 360°
Tri-Axis Mounting: No
ePoE: Yes

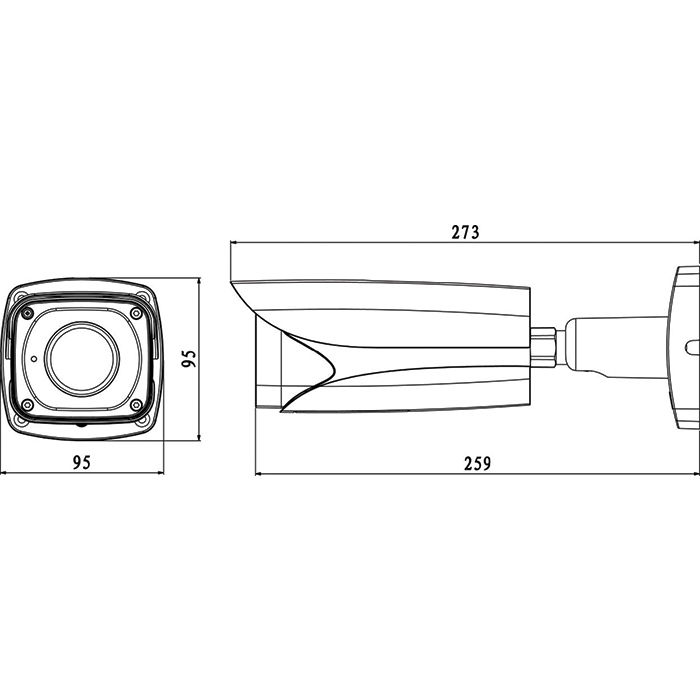

Dimensions: 273mm x 95mm x 96mm
Net Weight: 1.12kg
Warranty (Years): 4
Shipping Weight and Dimensions
Includes product packaging
Width: 366 mm
Height: 176 mm
Depth: 178 mm
Weight: 1.55 kg
