Double grip - separate crimp barrels for conductor and insulation
Conforms to AS 3169 and AS 4437
High quality product - meets international standards
PVC insulated
Product Description

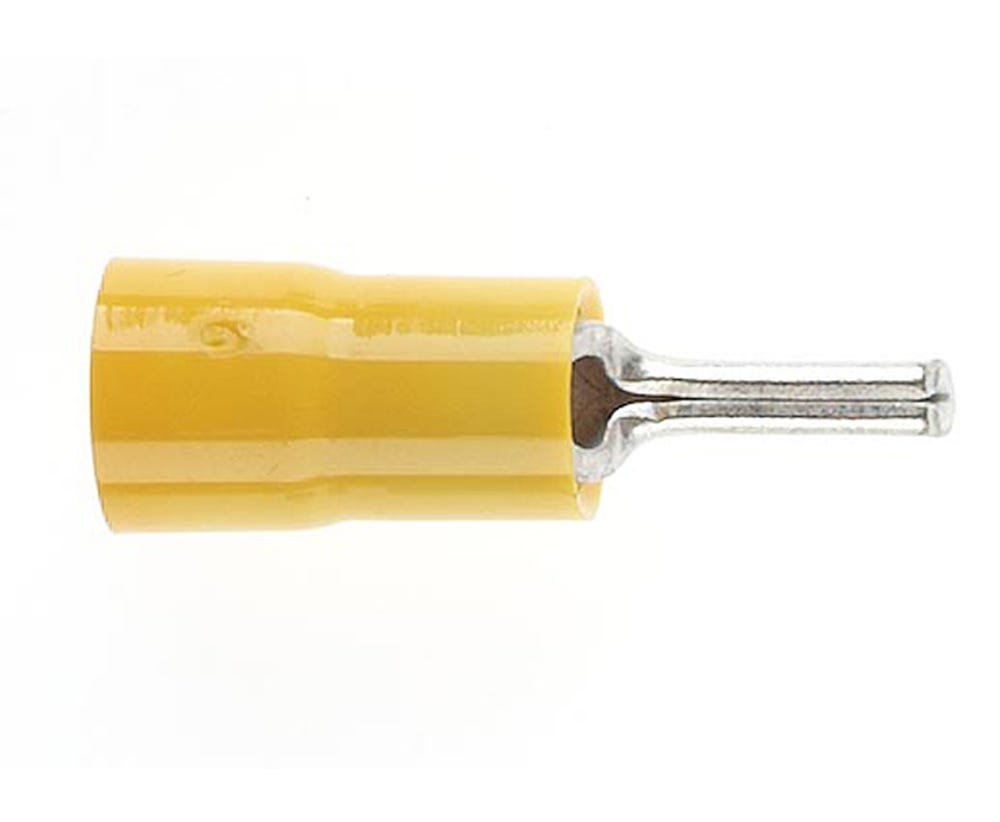

Yellow Pin Connector 0.3MM– DG
Cable terminations are getting smaller as time progresses. The 0.3mm– range accommodate fine conductors in the 0.2 to 0.5mm– range.
Pre-insulated Terminal Features
• High quality product meeting International Standards
• Funnel entry terminals allow easy conductor entry, minimising substandard crimps
• Long term electrical integrity
• Voltage rating 300V
• Full technical back up including QA
• Conforms to AS 3169 and AS4437
Note: This range should be crimped with the KTC05 tool.
Technical Data
Conductive Material (Quick Connect Range) Brass 30% Zinc, 70% Copper Tensile Strength 580 MPa Ductile Rating 6% min Final Metal State Annealed Working Temperature Pre-Insulated -40°C to +105°C Brass 145°C Tin plated 160°C
Conductive Material (Except Quick Connect Range) Copper 99.9% Pure Tensile Strength 200 MPa Ductile Rating 35% min Final Metal State Fully Annealed Oxygen Content 50ppm max General Electrical Properties Total Conductivity 99.5% IACS Total Resistivity 1.738 micro-ohm cm
Electroplating Material Tin Tin Content 99.9% Other Metals Lead + Antimony Plating Thickness 2.5 microns Insulation Material PVC for all except nylon 6 or nylon 66 for FIQC Breakdown Voltage 1.5kV (min) Insulation Resistance Above 100 meg ohms Working Voltage Up to 300V
AC/DC Conformant Standards AS4437, AS3169 Australia CSA Canada IEC Europe UL Nema USA Demko Denmark DIN VDE Germany Kema Holland JIS Japan; Nemko Norway ASE Switzerland BS United Kingdom
Torque Recommendations
For hardware being metric 8.8 tensile grade.
Thread Dia. (mm)Torque (Nm)
32
43
55
69
822
1044
1277
Nominal Pull Out Force
Pull out should be checked for each tool/terminal combination.
Wire Size (mm–)Pull Out Force kg (N)
0.254.6 (45)
0.506.0 (59)
0.758.6 (84)
1.0010.1 (100)
1.5013.2 (130)
2.5019.6 (192)
4.0026.5 (260)
6.0035.2 (345)
Technical Specifications
Cable Size (mm2): 0.2-0.5
Terminal Colour: Yellow
Terminal Type: Pin Connector
Additional information
| Material Group | AA |
|---|---|
| EAN | |
| Brand | |
| For Bulk Orders Please Call: | |
| Type | |
| Supplier | Cabac |
