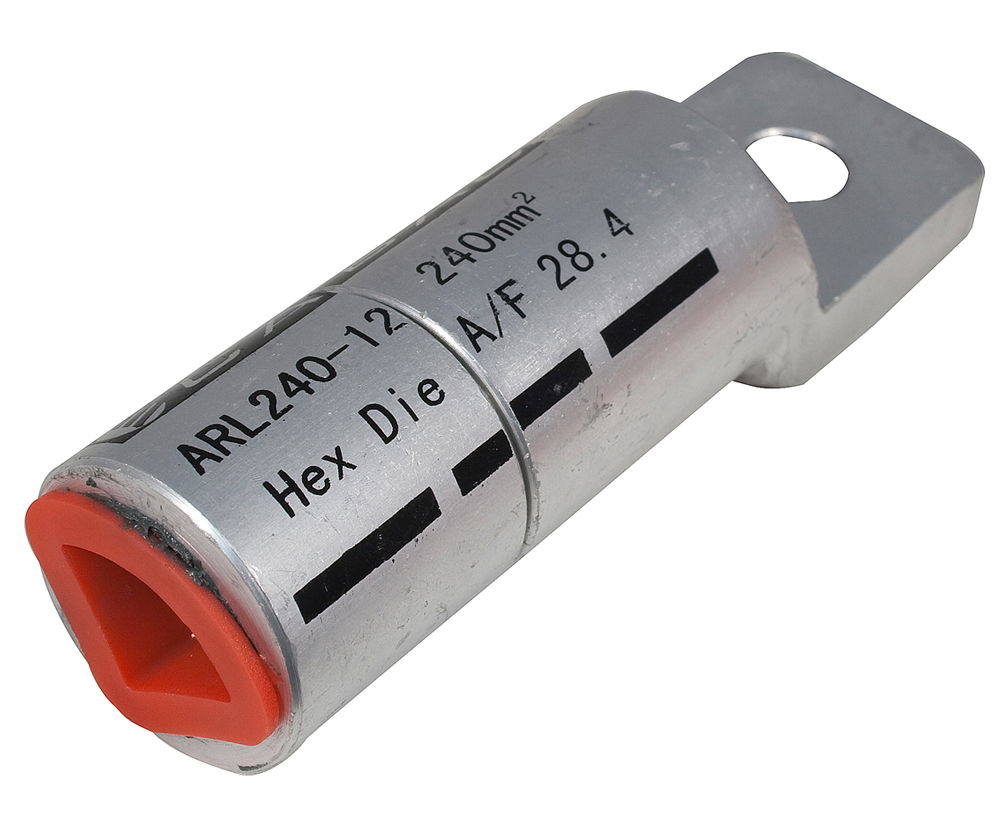

4 Core Sector Shaped Rotating Barell Lug
The CABAC rotating lug was specifically developed for use on 240mm2 Aluminium four core sector cable. The palm can easily be positioned to the termination point and crimped so that there is no need to twist the cable.
Note: this lug is for sector cable only.
4 Core Sector Shaped Rotating Barell Lug Features
Suits both solid and stranded sector cable
Barrel cavity is sector shaped
Eliminates the need to twist the cable to position the palm of the lug
The palm is correctly positioned before crimping
Uses a standard A/F 28.4 hex crimp die (HT-240/300AL)
The barrel is marked for the correct crimp positions
Only three crimps to complete the connection
Made of high conductivity, cold forged Aluminium
The rotating barrel is fixed to the palm section, so no loose parts
Ideal for terminations for URD, transformer, switchgear, etc.
Saves time and effort
Easy to position palm correctly for termination
One part; cannot loose parts
Saves on installation costs
AUS Patent No: AUS-2008258184 NZ Patent No: NZ-573715
Standards and Compliance
AS/NZS4325 Part 1; IEC France; DIN/VDE Germany; JIS Japan; BS United Kingdom; UL/NEMA USA
Technical Information
Nominal Conductor (mm2): 240
Stud Size: 12
Conductive Material
Aluminium 99.6% pure
Tensile Strength 110 MPa
Ductile Rating 28%
Final Metal State Fully Annealed
Electrical Properties
Resistivity 2.6 micro-ohm cm (max)
Conductivity 61.8% IACS (min)
Operating Temperature
-20 to +140 deg C
