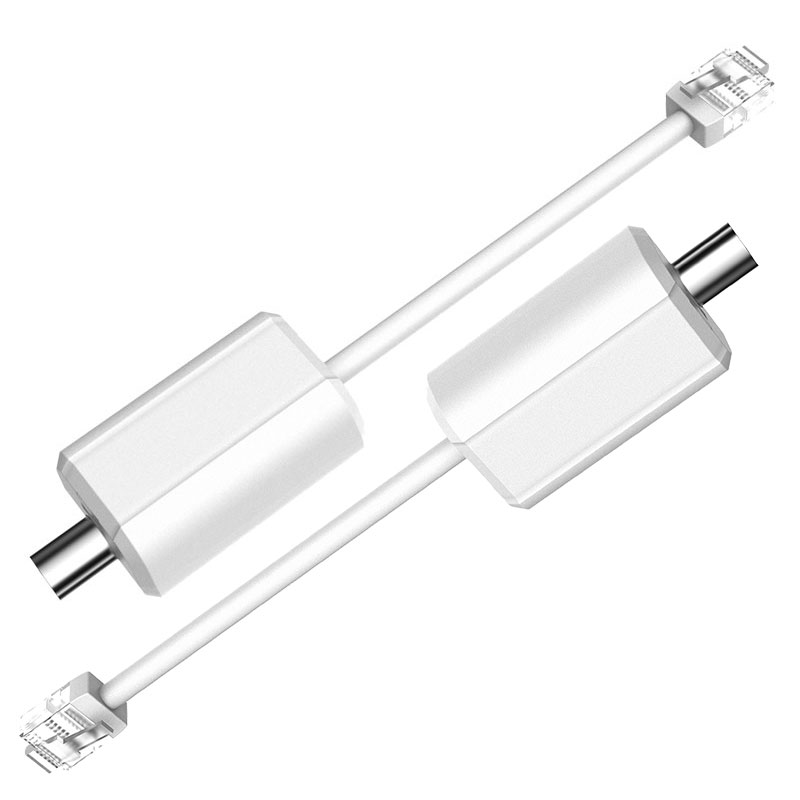

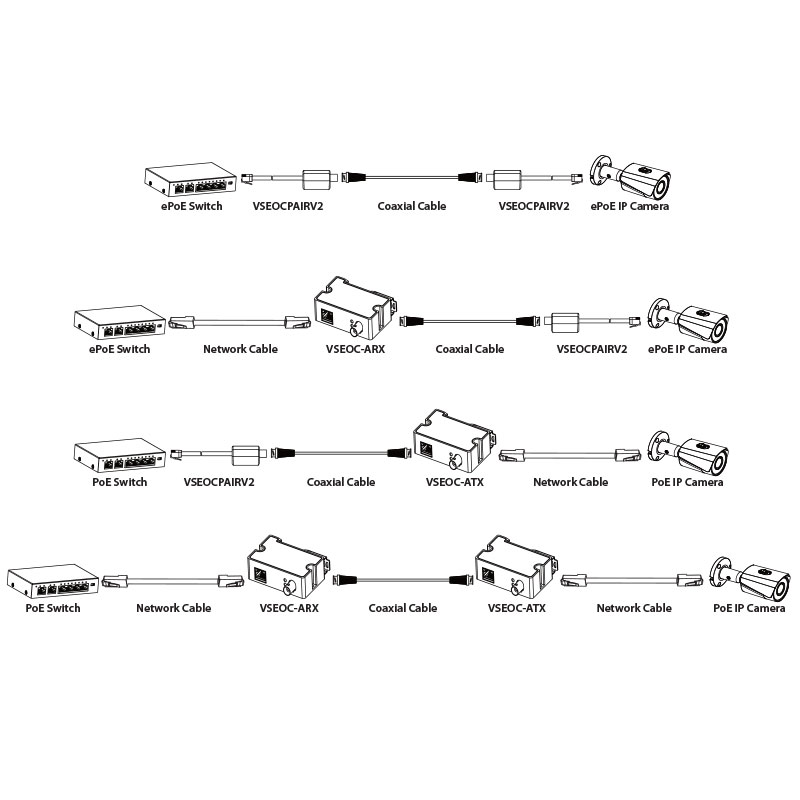

Convert RJ45 network connections to and from coaxial cable with the VSEOCPAIRV2. With these converters, you can repurpose existing coaxial cabling to be used with IP security systems, including PoE.
Product features:
• 1 x RJ45 10/100Mbps port, 1 x BNC port
• Supports IEEE802.3 & IEEE802.3u standards
• Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
• Supports MDI/MDIX self-adaption
• Supports long range power supply transmission via coaxial cable
• Two converters included
SPECIFICATIONS
Dimensions: 56mm x 27mm x 21mm
Network Protocol: Operating Environment
Operating Environment: PoE Protocol
PoE Protocol: Based on the power input from the ePoE switch
Ports: 1 x 10/100 Mbps Base-TX, 1 x BNC
Power Consumption: <1W
Surge Protection: Common Mode: 6KV / Differential Mode: 2KV
Transmission Bandwidth: RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
Weight: 28g
Warranty (Years): 4
Shipping Weight and Dimensions
Includes product packaging
Width: 130 mm
Height: 72 mm
Depth: 80 mm
Weight: 0.10 kg
