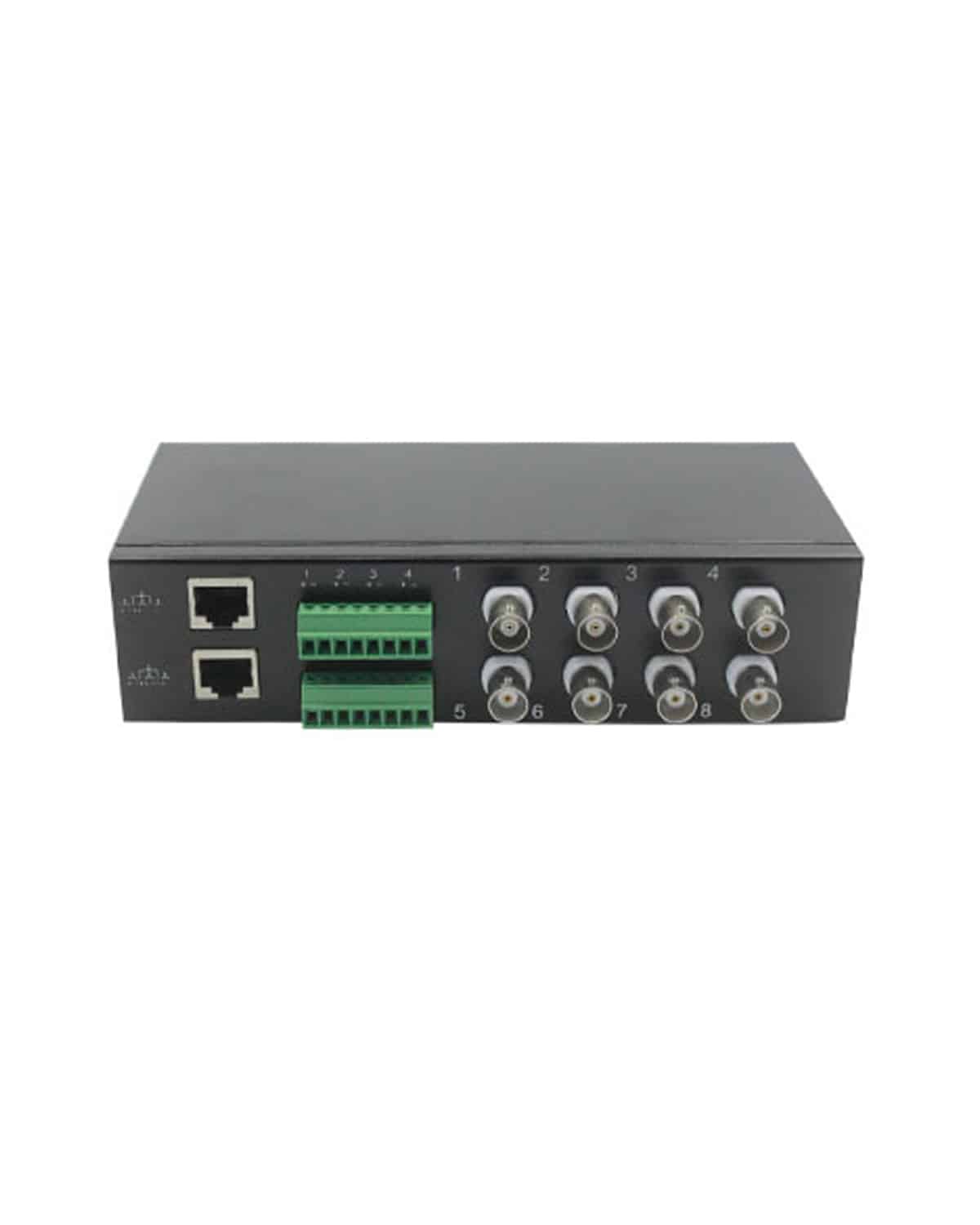

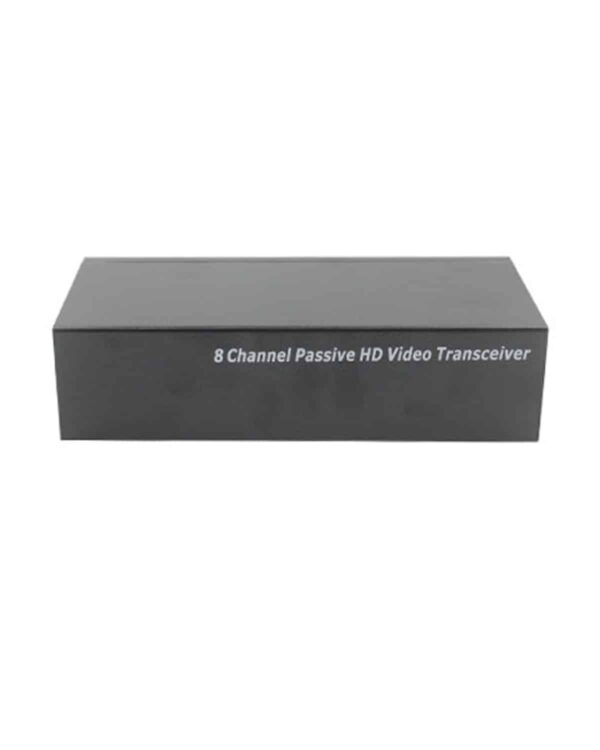

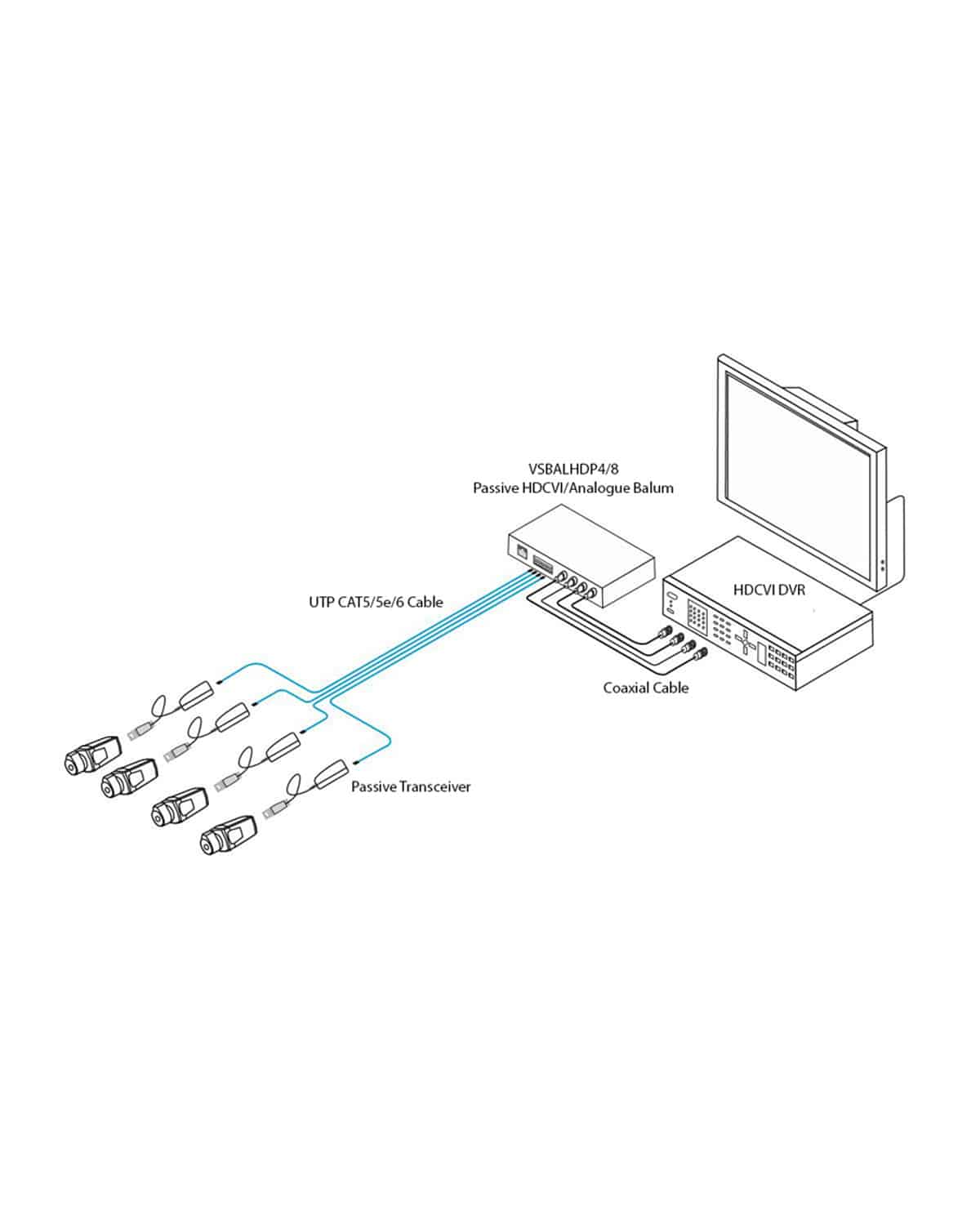

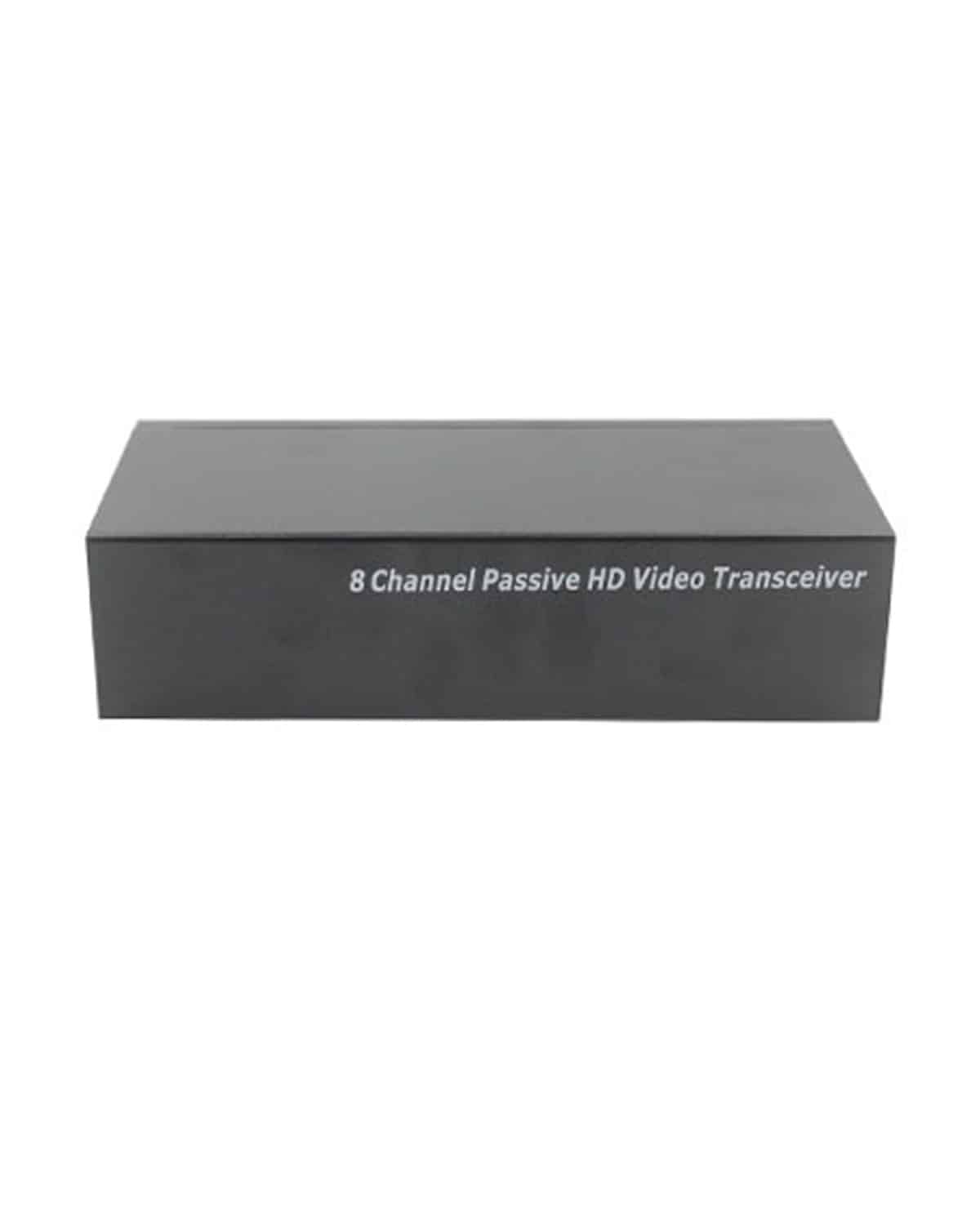

The VSBALHDP8 8 channel video balun minimises the cost of CCTV installations allowing network cabling (CAT5/5e/6) to be used instead of coax cable in HDCVI installations.
Product features:
• Compatible with up to 8 HDCVI, HDTVI and AHD signals
• Transmit HD video up to 400m (passive to passive)
• Transmit HD video up to 600m (passive to active)
• Compatible with CAT5/CAT5e/CAT6 UTP cable
• RJ45/green terminal block connects UTP cable
• Compact design with surge protection
• Passive - no power supply required
Includes:
1 x 8 Channel Passive HDCVI/Analogue Balun
1 x Installation manual
2 x Rack-mount ears
8 x Rack-mount screws
4 x Rubber base pads
Specifications
General
Channels: 8
UTP Cable Connector: 8 pin green terminal block / RJ-45
UTP Cable Connector Protection: 2KV (different mode) / 4KV (common mode)
Video Connector: BNC-F
Video Connector Protection: 2KV (common mode)
Interference Rejection: >60dB
Signal & Transmission
Signal Compatibility: HDCVI / HDTVI / AHD
Signal Transmission Band: 0-65MHz
Transmission Distance (AHD): 720p: 350m / 1080p: 200m
Transmission Distance (HDCVI): 720p: 400m / 1080p: 250m / 4.0MP: 200m
Transmission Distance (HDTVI): 720p/1080p: 250m
Environment
Dimensions: 180 x 100 x 45mm
Weight: 0.6kg
Warranty (Years): 1
Shipping Weight and Dimensions Includes product packaging
Width: 230 mm
Height: 70 mm
Depth: 125 mm
Weight: 0.70 kg
